† 교신저자, 아주대학교, 기계공학과 E-mail : [email protected] * 아주대학교, 기계공학과 대학원 ** 한국철도기술연구원, 차세대고속철도기술개발사업단

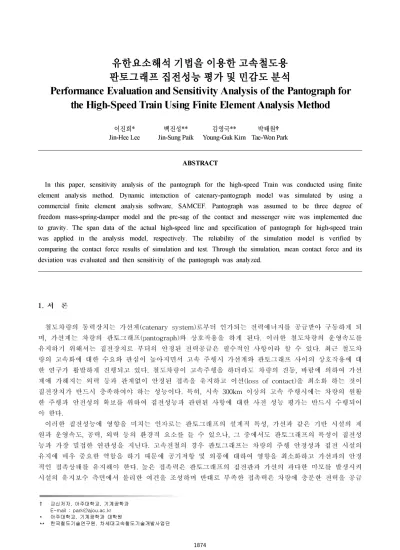

유한요소해석 기법을 이용한 고속철도용
판토그래프 집전성능 평가 및 민감도 분석
Performance Evaluation and Sensitivity Analysis of the Pantograph for
the High-Speed Train Using Finite Element Analysis Method
이진희* 백진성** 김영국** 박태원
Jin-Hee Lee Jin-Sung Paik Young-Guk Kim Tae-Won Park
ABSTRACT
In this paper, sensitivity analysis of the pantograph for the high-speed Train was conducted using finite element analysis method. Dynamic interaction of catenary-pantograph model was simulated by using a commercial finite element analysis software, SAMCEF. Pantograph was assumed to be three degree of freedom mass-spring-damper model and the pre-sag of the contact and messenger wire was implemented due to gravity. The span data of the actual high-speed line and specification of pantograph for high-speed train was applied in the analysis model, respectively. The reliability of the simulation model is verified by comparing the contact force results of simulation and test. Through the simulation, mean contact force and its deviation was evaluated and then sensitivity of the pantograph was analyzed.
