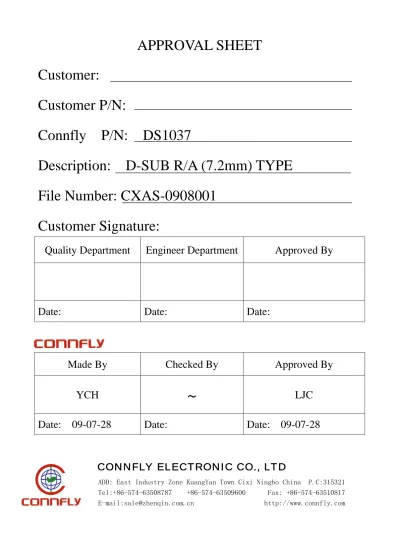

APPROVAL SHEET Customer:
Customer P/N:
Connfly P/N: DS1037
Description: D-SUB R/A (7.2mm) TYPE File Number: CXAS-0908001
Customer Signature:
Quality Department Engineer Department Approved By
Date: Date: Date:
Made By Checked By Approved By
YCH
~
LJCDate: 09-07-28 Date: Date: 09-07-28
CONNFLY ELECTRONIC CO., LTD
ADD: East Industry Zone KuangYan Town Cixi Ningbo China P.C:315321 Tel:+86-574-63508787 +86-574-63509600 Fax: +86-574-63510817 E-mail:[email protected] http://www.connfly.com
Content
front face………....1
content………..…..2
materials information………..……..3
customer drawing……….….……...4
product specification……….…….…..5
test report……….………13
plating thickness test report………..16
materials certification……….……….………20
MSDS report……….………...…25
SGS report……….………...33
REACH report……….……..58
packing specification……….….…….……60
UL Certification……….….…….…….……61
Item Part Name Materials Finished
1 Contact Brass Selective gold flash 2 Boardlock Brass Full tin
3 Shell Steel Full nickel 4 Screw Copper alloy Full nickel 5 Rivet Copper alloy Full nickel 6 Housing PBT UL 94 V-0
7 Cover PBT UL 94 V-0
