G A S A N E S T H E S I A

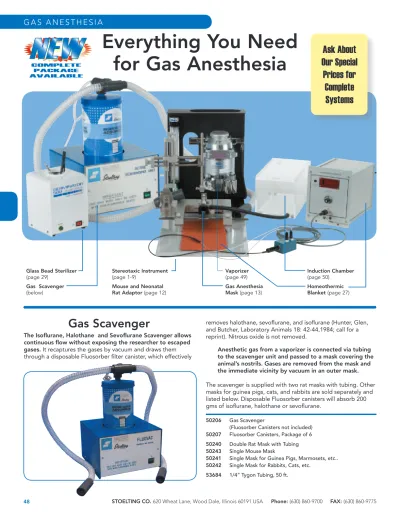

Everything You Need for Gas Anesthesia
Gas Scavenger
The Isofl urane, Halothane and Sevofl urane Scavenger allows continuous fl ow without exposing the researcher to escaped gases. It recaptures the gases by vacuum and draws them through a disposable Fluosorber fi lter canister, which effectively
Glass Bead Sterilizer (page 29)
Gas Scavenger (below)
Stereotaxic Instrument (page 1-9)
Mouse and Neonatal Rat Adaptor (page 12)
Vaporizer (page 49) Gas Anesthesia Mask (page 13)
Induction Chamber (page 50)
Homeothermic Blanket (page 27)
Ask About Our Special Prices for
Complete Systems
COMPLETE PACKAGE AVAILABLE
removes halothane, sevofl urane, and isofl urane (Hunter, Glen, and Butcher, Laboratory Animals 18: 42-44,1984; call for a reprint). Nitrous oxide is not removed.
Anesthetic gas from a vaporizer is connected via tubing to the scavenger unit and passed to a mask covering the animal’s nostrils. Gases are removed from the mask and the immediate vicinity by vacuum in an outer mask.
The scavenger is supplied with two rat masks with tubing. Other masks for guinea pigs, cats, and rabbits are sold separately and listed below. Disposable Fluosorber canisters will absorb 200 gms of isofl urane, halothane or sevofl urane.
50206 Gas Scavenger
(Fluosorber Canisters not included) . . . $ 2,350.00 50207 Fluosorber Canisters, Package of 6. . . $ 375.00 50240 Double Rat Mask with Tubing . . . $ 450.00 50243 Single Mouse Mask . . . $ 250.00 50241 Single Mask for Guinea Pigs, Marmosets, etc... . . $ 300.00 50242 Single Mask for Rabbits, Cats, etc.. . . $ 300.00 53684 1/4” Tygon Tubing, 50 ft.. . . $85.00
STOELTING CO. Phone: (630) 860-9700 email: [email protected] website: www.StoeltingCo.com/Physio 49
G A S A N E S T H E S I A
For Rats and Mice
Two Flowmeter (O 2 & N 2 O) Table Top Gas Anesthesia
Instrument
For Rodent Surgery Lab
This table-top instrument includes both Oxygen and Nitrous Oxide flow meters for 1-1000 cc/min flow rates, suitable for rodents. Using nitrous oxide mixed with the anesthetic gases allows smaller doses of either than would be required alone.
Both flowmeters and a vaporizer are mounted on a base with a drawer for storage. N2O dilutes the oxygen and reduces oxidative damage to tissues.
This instrument is for open circuit use only, and must be used with the animal under a hood or with a scavenger such as the 50206 scavenger described on the previous page.
SPECIFICATIONS
O2 Flow Meter . . . 1-1000 cc/min N2O Flow Meter . . . 1-1000 cc/min Circuit Configuration . . . Open Vapor Concentration . . . 0.5-5%
Flow Rate Compensation. . . Automatic Temperature Compensation . . . Automatic Dimensions. . . 15 in x 15 in
Open Circuit Gas Anesthesia Systems
Stoelting has confi gured an open circuit system (without absorption chamber or breathing bag) for scientists who work only with rodents and small animals.The tidal volumes of small (<7kg) animals do not allow for an absorption chamber and recycling. A slow fl ow of gas from the vaporizer output is released at the animal’s nose.
The tabletop model has the same specifi cations as its 5-legged stand counterpart. It offers a smaller footprint (16” x 7.5”) than competitive instruments, and a lower price.
This instrument can be used with the animal under a hood, or with a scavenger such as the 50206 Scavenger offered on the previous page. The open circuit systems include a lower volume fl owmeter (1-1000 cc) that provides better resolution when working only at low fl ows suitable for rodents. Special masks for stereotaxic surgery (51609 and 51610) are available. The 50201, 50251 and 52213 are furnished complete with a 5-legged, wheeled stand for easy transport.
SPECIFICATIONS
O2 Flow Meter . . . 1-1000 cc/min Vapor Concentration . . . 0.5-5%
Flow Rate Compensation. . . Automatic Temperature Compensation . . . Automatic
50263
50260
ECONOMY TABLETOP SYSTEM
50262 Open Halothane Tabletop System . . . $2,895.00 50263 Open Isofl urane Tabletop System. . . $2,895.00 52210 Open Sevoflurane Tabletop System . . . $2,895.00
5-LEGGED, WHEELED STAND SYSTEM
50201 Open Halothane System . . . $ 2,895.00 50251 Open Isofl urane System . . . $ 2,895.00 52213 Open Sevofl urane System. . . $ 2,895.00 51609 Mouse Gas Mask for Stereotaxic Instrument . . . $ 195.00 51610 Rat Gas Mask for Stereotaxic Instrument. . . $ 195.00 50206 Isofl urane/Halothane/Sevofl urane Scavenger. . . $ 2,350.00 50207 Fluosorber Canisters, pk 6 . . . $ 375.00 53684 1/4” Tygon Tubing, 50 ft.. . . $85.00
50260 Table Top Open Halothane System. . . $ 4,595.00 50261 Table Top Open Isofl urane System . . . $ 4,595.00 52212 Table Top Open Sevofl urane System. . . $ 4,595.00 50265 Optional Rebreathing Assembly. . . $ 1,575.00 51609 Mouse Gas Mask for Stereotaxic Instrument . . . $ 195.00 51610 Rat Gas Mask for Stereotaxic Instrument. . . $ 195.00 50206 Isofl urane/Halothane/Sevofl urane Scavenger. . . $ 2,350.00 50207 Fluosorber Canisters, pk 6 . . . $ 375.00 53684 1/4” Tygon Tubing, 50 ft.. . . $85.00
Sits on benchtop for
convenient rat and
mouse surgery
SEVOFLURANE SYSTEM
For Rats
and Mice
50 STOELTING CO. 620 Wheat Lane, Wood Dale, Illinois 60191 USA Phone: (630) 860-9700 FAX: (630) 860-9775
G A S A N E S T H E S I A
Gas Anesthesia Vaporizers
These precision vaporizers used on the Gas Anesthesia Systems ensure that the output concentration is not affected by flow rate, temperature variation, duration of use, liquid level, or back pressure
Nitrous Oxide Kit and O
2Flowmeter
N20 add-on kit allows small amounts of Nitrous Oxide (N2O) to be mixed with the O2. N2O dilutes the oxygen and reduces oxidative damage to tissues. The
Yokes
Yokes add onto the Gas Anesthesia Systems for easy mobility. Yokes allow mounting the gas cylinders (E or D sizes) directly on the wheeled stand of the Gas Anesthesia System. Yokes come with single stage regulators, gauges and all needed hoses.
Large Tank Regulators
Large tanks require pressure regulators. These are two stage regulators, which step the pressure down to near the correct level, then precisely to the right level, with gauges for both the tank pressure and the end pressure. Supplied without hoses.
Induction Chambers
For initial anesthetization of animals diffi cult to keep masked when awake. Route gas through chamber, then to mask or 50206 Scavenger. Includes a hook-up kit
Euthanasia Chamber
This product is perfect for rodents and other small animal species.
The animal is placed inside the container and a cartridge is activated, thereby sending carbon dioxide into the chamber. A flow limiting orifice and noise muffler are incorporated into the system
fluctuation. This is the most popular vaporizer in veterinary and research labs. Adaptors and tubing must be ordered separately.
50210 Halothane Vaporizer. . . $ 1,799.00 50211 Isofl urane Vaporizer. . . . $ 1,799.00 52211 Sevofl urane Vaporizer . . . $1,799.00 50212 Tubing Inlet Adaptor . . . $ 50.00 50213 Tubing Outlet Adaptor . . . $ 50.00 50214 Rubber Tubing, 6 ft . . . $ 45.00
FOR 4 LEGGED STAND (OLDER MODELS)
50219 Yoke for 1 O2, 1 N2O. . . $ 850.00 FOR 5 LEGGED STAND (NOS. 50200, 50201, 50250, 50251)
50256 Yoke for 2 O2 Tanks.. . . $ 650.00 50257 Yoke for O2 & N2O Tanks . . . $ 1,250.00 50258 Yoke for 2 O2 & 2 N2O Tanks. . . $ 1,800.00
50217 Regulator, O2 . . . $ 475.00 50221 Regulator, N2O. . . $ 475.00 HOSES, FEMALE DISS TO FEMALE DISS CONNECTORS
50222 O2 Hose, 6’ . . . $ 95.00 50223 N2O Hose, 6’. . . $ 95.00 HOSES, FEMALE DISS
TO OHIO MALE QUICK CONNECTORS
50244 O2 Hose, 6’ . . . $ 95.00 50245 N2O Hose, 6’. . . $ 95.00
preventing distress in the animals. The specimen container is made of durable plastic and can be easily cleaned and/or replaced. The system includes the container, valve assembly lid, and 3 carbon dioxide cartridges. Size: approximately 8" tall x 6" wide.
51370 Small Animal Euthanasia Chamber . . . $100.00 51369 CO2 Refi ll Cartridges, pkg of 10 . . . $17.50 51368 Replacement Container & Lid. . . $10.00 O2 fl owmeter features a glass fl owmeter with a fused scale that reads from 0.2-4 LPM. The kit consists of a fl owmeter (0.2-4.0 LPM), a safety valve, hoses, and tubing with a “Y” connector to join the O2 and N2O fl ows.
50203 Nitrous Oxide Kit 0.2-4.0 LPM . . . $ 825.00 50204 O2 Flowmeter 0.2-4.0 LPM. . . $ 750.00 of 4 ft. of rubber tubing and inlet port connector. Two sizes are available: Rat/Small Rodent, 25x13x13 cm, Cat/Rabbit, 40x20x28 cm.
50216 Induction Chamber, Rat/Small Rodent . . . $ 175.00 50237 Induction Chamber, Cat/Rabbit. . . $ 325.00
STOELTING CO. Phone: (630) 860-9700 email: [email protected] website: www.StoeltingCo.com/Physio 51
Ventilator For Perinatal Rodents
Stoelting’s newly designed ventilator is compact, quiet, lightweight and virtually vibrationless. Thus, they may be positioned directly next to the animal, eliminating tidal volume error due to system compliance.
While it was designed specifi ally for mice, the MiniVent can be used for any animals (e.g. birds and perinatal rats) which require tidal volumes in the range of 30-350 ul. The MicroVent Ventilator is the ideal ventilator for very small animals, even perinatal mice, which require tidal volumes in the range of 0-130 ul. Both feature respiratory rates of 60-400 breaths per minute.
Gas Anesthesia
Platform
For Precise and Secure Positioning During Surgery
See page 13 for complete description.
50264 Anesthesia Platform/Mouse Mask. . . $295.00 50267 Anesthesia Platform/Rat Mask . . . $295.00 50266 Anesthesia Platform Only . . . $150.00
Anesthesia Masks enable gas anesthesia of rats or mice in a Lab Standard or other stereotaxic instruments without exposing the researcher to the anesthetic. See page 13 for complete description.
The MicroVent and MiniVent are constant volume respiration pumps operating on the Starling principle. Unlike conventional units for larger animals, these ventilators employ a rotary plunger and have no valves. During each ventilation cycle, the plunger performs a synchronized forward and rotating movement. Cleverly arranged bores and channels in the cylinder and plunger control inspiration and expiration during each stroke of the plunger.
A multi-gas inlet adapter is available so that alternate gas mixtures and nebulized substances are delivered to the inlet port at atmospheric pressure. The adaptor provides ports for multiple selectable gas mixtures (hypoxic, anesthetic, etc.) and a port for the Aerosol Nebulizer.
Each ventilator comes complete with: one AC wall mounted power supply (115 or 220V); two silicone tubings, 1.5mm I/D, 3.0 mm O/D, I4 cm length; one 1.3mm O/D tracheotomy Cannula; one 1.2 OD Intubation Cannula.
Visit our website for complete information.
50098 Mini Ventilator 110V AC. . . $3,195.00 50099 Micro Ventilator 110V AC . . . $5,750.00 For 220V, add a “V” to the catalog number
FEATURES:
• Ideal ventilator for mice
• Stroke volume range from 30 to 350 ul
• Ventilation rate from 60 to 400 breaths/minute
• Simple adjustment of stroke voume while running
• Valveless piston pump, no valves to clog
• Very small instrument/circuit dead space volume.
• Compact construction, easy to install close to animal
• No vibration, very low noise.
Gas Anesthesia Mask
For Mice or Rats in a Stereotaxic Instrument
51610 Rat Mask on 51621 Rat Adaptor (not included) 50264
The tidal volume can be varied continuously throughout its range during operation without interrupting ventilation.
The expired air can be recovered at the collection ports for sampling, recycling or generating a positive end expiratory pressure (PEEP). Room air or any non-explosive gas mixture can be used to feed the pump intake.
Larger ventilators produce large tubing and instrument dead space volumes. This introduces greater system compliance issues which can affect the accuracy with which the full tidal volume is introduced into the animal’s lungs. These ventilators reduce the tidal volume error due to system compliance to 3 ul.
