FOR MARBLE

Power 5.5 kW 3-phase

Voltage 400 V

230 V 3-phase

available on special order

Motor rpm 960

Abrasive 300 mm

holding plate ø

Plate RPM 514 rpm - 485 m/min.

and peripheral speed

Water tank 48 l capacity

Size 615x1085x1200 mm

Dimensions of 800x1200x1000 mm palletized carton

Net weight 192 kg without accessories

Gross weight 234 kg

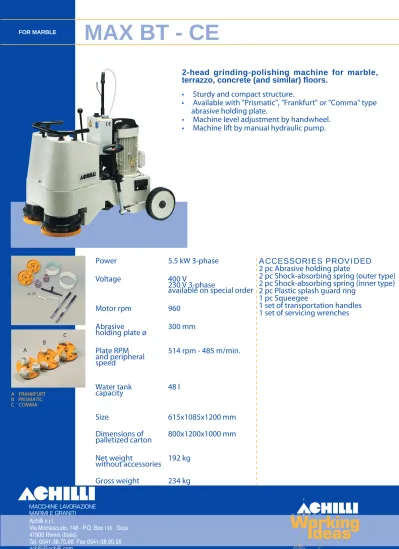

MAX BT - CE

ACCESSORIES PROVIDED 2 pc Abrasive holding plate

2 pc Shock-absorbing spring (outer type) 2 pc Shock-absorbing spring (inner type) 2 pc Plastic splash guard ring

1 pc Squeegee

1 set of transportation handles 1 set of servicing wrenches

2-head grinding-polishing machine for marble, terrazzo, concrete (and similar) floors.

• Sturdy and compact structure.

• Available with "Prismatic", "Frankfurt" or "Comma" type abrasive holding plate.

• Machine level adjustment by handwheel.

• Machine lift by manual hydraulic pump.

A FRANKFURT B PRISMATIC C COMMA

A

B C

138
