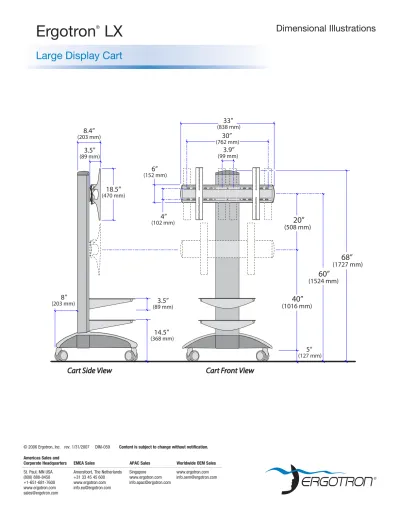

Dimensional Illustrations
Large Display Cart
Ergotron
®LX
8.4”
(203 mm)
(1727 mm) 68”
(1524 mm) 60”
(1016 mm) 40”
(508 mm) 20”
(127 mm) 5“
(838 mm) 33”
(762 mm) 30”
3.9”
(99 mm)
(203 mm) 8”
14.5”
(368 mm) (89 mm) 3.5”
(102 mm) 4”
(152 mm) 6”
(89 mm) 3.5”
18.5”
(470 mm)
Cart Side View Cart Front View
© 2006 Ergotron, Inc. rev. 1/31/2007 DIM-059 Content is subject to change without notification.
Americas Sales and
Corporate Headquarters EMEA Sales APAC Sales Worldwide OEM Sales
St. Paul, MN USA (800) 888-8458 +1-651-681-7600 www.ergotron.com sales@ergotron.com
Amersfoort, The Netherlands +31 33 45 45 600 www.ergotron.com info.eu@ergotron.com
Singapore www.ergotron.com info.apac@ergotron.com
www.ergotron.com info.oem@ergotron.com
Tilt Range of Motion = 20°
Forward +15° / Backward -5°
