www.jkfas.org pISSN 1738-3757 eISSN 2288-8551 J Korean Foot Ankle Soc 2015;19(1):23-26 http://dx.doi.org/10.14193/jkfas.2015.19.1.23
Herein, we describe hybrid vascular surgery for AVM at calf mus- cle (embolization of the feeding artery with subsequent immediate excision of the AVM).
CASE REPORT
A 38-year-old man was suffering from spontaneously developed painful calf mass on left lower leg from the past 2 months. The patient complained sharp, clumping pain and tingling sensation in the mass. Numeric rating scale for pain was checked as 4. The patient did not have any other medial disease or medication his- tory. Apart from history of trauma at right lower extremity, there were no other surgical histories. The patient was a non-smoker, and non-alcoholic. Systolic pressure was 120 mmHg, and diastolic pressure was 70 mmHg. Pulse rate was 70/min. The physical characteristics like height, and weight were 170.6 cm, and 55.2 kg, respectively. Physical examination of patient revealed swelling, and presence of fixed soft tender palpable mass in left posterior medial calf area. There were no other signs of redness or heat- ing. Pathological analysis revealed hemoglobin level as 14.1 g/dL, hematocrit value as 42.1%, and platelet count as 215,000/μL. The Arteriovenous malformations (AVMs) are characterized by the
presence of abnormal connections between feeding arteries and draining veins. An AVM may present symptoms and signs such as thrill and pulsation, sensation of heat, port-wine stain, pain, tissue necrosis, limb length discrepancy, bleeding and cardiomegaly. Al- though asymptomatic lesion can be observed, the AVM with these symptoms is preferable to be treated.1)
Surgical excision of AVMs possesses bleeding risk that can be massive and life threatening during the operation. According to the recent advances in interventional technique, a hybrid approach for successful management of vascular lesion has been introduced and seems to be effective.1) However, there are limited reports about simultaneous combined treatment procedure with embo- lization and surgical excision or just simple surgical resection.2-5)
Case Report
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/CC
by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright 2015 Korean Foot and Ankle Society. All rights reserved.ⓒ
Received December 10, 2014 Revised January 28, 2015 Accepted February 9, 2015 Corresponding Author: Sangchul Yun
Department of Surgery, Soonchunhyang University Seoul Hospital, Soonchunhyang University College of Medicine, 59 Daesagwan-ro, Yongsan-gu, Seoul 140-743, Korea
Tel: 82-2-709-9240, Fax: 82-2-749-0449, E-mail: [email protected] Financial support: This work was supported by the Soonchunhyang University Research Fund.
Conflict of interest: None.
Arteriovenous malformations (AVMs) are characterized by the presence of abnormal connections between feeding arteries and draining veins. It is generally assumed that symptomatic lesions can preferably be treated. Due to high arterial blood flow, there is a risk of bleeding with surgical excision alone, which can be massive and life threatening during the operation. According to recent advances in interventional technique, a hybrid approach using embolization of the feeding artery with subsequent immediate excision of the AVM for successful man- agement of vascular lesions could be applied to AVMs. Herein, we describe a case of successful excision of AVM in the left soleus muscle us- ing a hybrid approach.
Key Words: Arteriovenous malformations, Vascular surgical procedures, Therapeutic embolization

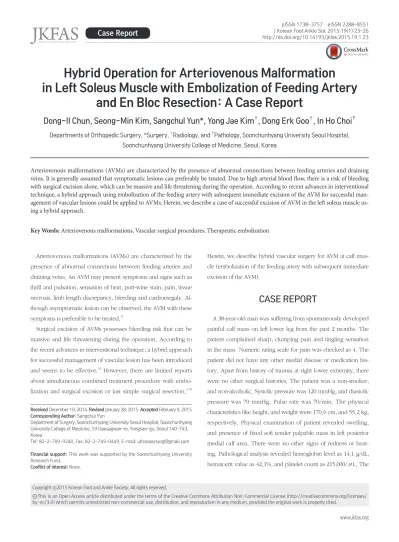

Hybrid Operation for Arteriovenous Malformation in Left Soleus Muscle with Embolization of Feeding Artery
and En Bloc Resection: A Case Report
Dong-Il Chun, Seong-Min Kim, Sangchul Yun*, Yong Jae Kim†, Dong Erk Goo†, In Ho Choi‡
Departments of Orthopedic Surgery, *Surgery, †Radiology, and ‡Pathology, Soonchunhyang University Seoul Hospital, Soonchunhyang University College of Medicine, Seoul, Korea
24 Vol. 19 No. 1, March 2015
tiseptated appearance with heterogeneous enhancement. Certain engorged vascular structures were present around the lesion along with feeding and draining vessels. The mass was considered as a tumor of vascular origin (Fig. 1A∼D). Therefore, we decided to combine embolization and surgical excision of AVM, a sort of hy- brid vascular surgery.
other laboratory tests, including blood chemistry, and coagula- tion profile were all within normal ranges. A simple radiograph showed no abnormal findings. Magnetic resonance imaging of lower extremity revealed a 1.6×1.6×2.7 cm sized round shaped T1 iso and T2 bright high signal intensity lesion in medial aspect of soleus muscle in left lower extremity. The lesion exhibited mul-
Figure 1. Radiologic findings of arteriovenous malformation in the soleus muscle. (A, B) Axial and coronal T1-weighted magnetic resonance (MR) im- age shows iso-intense lesion in medial aspect of soleus muscle in left lower extremity. (C, D) T2-weighted MR image shows bright, highly intense, and round shaped lesion with dimentions of 1.6×1.6×2.7 cm. (E) Angiogram of left lower extremity arteries; digital subtraction angiography shows about 4 cm sized vascular malformation feed from left posterior tibial artery. (F) Post-embolization arteriogram; feeding artery was successfully em- bolized with gelfoam and microcoil.
A B C D E F
Figure 2. Macro- and microscopic findings of arteriovenous malformation in the soleus muscle. (A) Arrow indicates embolized feeding artery which is arized from posterior tibial artery. (B) The cut section of resected specimen reveals mixed fibrofatty tissue and muscle containing several medium- sized blood vessels. (C) At the low power view, a mixture of varying sized vessels, fatty tissue, and muscular tissue is noted (H&E stain, ×12.5). (D) A thick walled vessel with embolization material is noted on the upper portion (arrow), and area of mixed fatty and muscular tissue is seen on the cen- ter (H&E stain, ×40). (E) Some vessel has fibrously thickend wall with osseous metaplasia (H&E stain, ×100). (F) Artery (arrow) and dilated vascular channel (asterisk) are connected within the muscle bundles. Factor-VIII highlights endothelial cells in both artery and vascular channel (Factor-VIII stain, ×100)
D E F
A B C
*
www.jkfas.org 25 Dong-Il Chun, et al. Hybrid Operation for Arteriovenous Malformation
operative sixth day without any complications.
DISCUSSION
Vascular malformations can be divided according to vascular channel type (capillary, lymphatic, venous, arterial, or combina- tions thereof) or blood flow (slow versus fast). Slow-flow vascular lesions include capillary malformations, lymphatic malformations, and venous malformations. Fast-flow lesions include arteriovenous fistulae and AVMs. According to Hamburg classification, AVMs are classified as truncular lesions and extratruncular lesions.6) The truncular lesions are divided into superficial lesions and deep le- sions. The extratruncular lesions are divided into the infiltrating lesions and the limited lesions. In general, vascular malformations are treated with sclerotherapy, embolization, or surgical excision.1)
In the present study, the patient had painful limited mass lesion at left calf muscle that was indicated en bloc resection of mass including a nidus of the AVM to prevent recurrence.7) However, AVMs have abnormal connections between feeding arteries and draining veins. Surgical treatment could induce massive bleeding during the operation due to high arterial blood flow. Nevertheless, preoperative embolization or sclerotherapy may decrease intraop- erative blood loss and increase the likelihood of clinical success of operations. Such combined modalities with endovascular and con- ventional surgery, namely hybrid operation, have been developed in the field of vascular surgery with demonstrable improvements in surgical results.8) There are no clear indications of preoperative embolization. However, strict surgical approach is discouraged and today vascular malformations should be attended to and treat- ed by multidisciplinary approach to improve the results.
Herein, we report a case of intramuscular AVM in the left soleus muscle, which was successfully treated with hybrid surgical ap- proach. Magnetic resonance imaging revealed engorged vascular structures with the findings of feeding and draining vessels. Lower extremity angiography was performed to identify and embolize the feeding artery. The hybrid surgical approach was proven successful in removing AVMs with good field of vision. Minimal blood loss was noted in patients, though blood transfusion was not required. Morever, hemoglobin level was also maintained.
The patients showed no perioperative complications.2)
There are a previous report mentioned about preoperative embolization for surgery of AVMs; however, there is no clear in- dication about time interval between embolization and excision.1) However, in case where the feeding artery is closed with embo- To prevent any possible bleeding during mass excision, we
decided to proceed with preoperative embolization. Because our hospital did not have hybrid operation room, the patient was first managed at the intervention room and moved to the operation room. In the intervention room, the patient was placed in the supine position on the fluoroscopy table. The inguinal area was cleaned and draped in standard sterile fashion. Under lidocaine 1% local anesthesia, a 6 Fr introducer sheath was placed in right common femoral artery. A 0.035-guide wire was advanced to left femoral artery through introducer sheath at right femoral artery. A Cobra catheter (Cook Medical, Bloomington, IN, USA) was insert- ed over the guidewire and directed towards left femoral artery. An angiogram with Cobra catheter showed about 4 cm sized vascular malformation feed from left posterior tibial artery (Fig. 1E). The feeding branch from posterior tibial artery was successfully embo- lized with gelform and microcoil (Cook Medical) (Fig. 1F). There was no acute complication after the embolization procedure.
Subsequently, the patient was moved to operating theater. Un- der spinal anesthesia, the patient was placed on supine position.
Left lower extremity was prepared and draped in standard sterile fashion without toniquet. The location of mass was confirmed and skin marking was done with Doppler ultrasound for exact skin incision. A 7 cm longitudinal skin incision was made above the mass. After dissection of subcutaneous tissue and soleus muscle, blood containing tortuous bunch (dark cherry-colored lesion) was located in soleus muscle. Meticulous dissection along the margin of mass revealed posterior tibial artery. Another meticulous dissec- tion along the tibial artery revealed feeding artery into the hem- angioma, which had been embolized previously (Fig. 2A). The feding artery and the draining veins were carefully isolated and ligated. In the good field of vision, en bloc excision of the mass was done immediately, for complete removal of the AVM. After wound irrigation and complete hemostasis, a Penrose drain was placed. Prophylactic fasciotomy was not performed. The wound was closed layer by layer and there was no necessity for blood transfusion. The leg was not swell postoperatively. The penrose drain was removed with small amount of discharge 3 day after operation. Postoperative pathological examination revealed hemo- globin level as 13.5 g/dL, hematocrit value as 40.8%, and platelet count as 316,000/μL. The pathology revealed a thick walled ves- sel containing intraluminal embolization material, intermixed fatty component and skeletal muscle (Fig. 2B∼D). Some area shows fibrous vessel wall with osseous metaplasia communicating with muscle bundles (Fig. 2E, F). The patient was discharged by post-
26 Vol. 19 No. 1, March 2015
21 Hristov N, Atanasov Z, Zafirovski G, Mitrev Z. Intramuscular cavernous hemangioma in the left soleus muscle: successful sur- gical treatment1 Interact Cardiovasc Thorac Surg1 2011;13:521-21 31 Mendonca DA, McCafferty I, Nishikawa H, Lester R. Venous
malformations of the limbs: the Birmingham experience, com- parisons and classification in children1 J Plast Reconstr Aesthet Surg1 2010;63:383-91
41 Nazzi V, Messina G, Dones I, Ferroli P, Broggi G. Surgical re- moval of intramuscular arteriovenous hemangioma of the upper left forearm compressing radial nerve branches1 J Neurosurg1 2008;108:808-111
51 Kim DH, Hwang M, Kang YK, Kim IJ, Park YK. Intramuscular hemangioma mimicking myofascial pain syndrome: a case re- port1 J Korean Med Sci1 2007;22:580-21
61 Belov S. Anatomopathological classification of congenital vascu- lar defects1 Semin Vasc Surg1 1993;6:219-241
71 Lee BB. Critical issues in management of congenital vascular malformation1 Ann Vasc Surg1 2004;18:380-921
81 Choke E, McCarthy M. Hybrid procedures in vascular surgery:
converging technique to improve results1 J Cardiovasc Surg (To- rino)1 2010;51:857-91
91 Rockman CB, Rosen RJ, Jacobowitz GR, Weiswasser J, Hofstee DJ, Fioole B, et al. Transcatheter embolization of extremity vas- cular malformations: the long-term success of multiple inter- ventions1 Ann Vasc Surg1 2003;17:417-231
101 Richter GT, Suen JY. Clinical course of arteriovenous malfor- mations of the head and neck: a case series1 Otolaryngol Head Neck Surg1 2010;142:184-901
lization, the AVM including nidus should be removed as soon as possible. Because there was a possibility of fast growth of other collateral vessels and quiescent AVMs, AVMs could be bigger than before. In addition, if the feeding artery of the AVM is ligated without removal of nidus of AVM, further embolization will be im- possible due to there will be no accessible route for interventional approach.9) However, one day interval between two procedures may be compatible to the patient. In the present case, 38 years old patient without comorbidity could undergo simultaneous two pro- cedures.
In conclusion, we propose that focal AVMs can be excised with good results.10) The goal of the operation was complete excision to normal margins with removal of the nidus of the AVM. In terms of bloodless operation and improved results, AVM can be safely removed via combination of embolization and surgical excision, termed as hybrid operation.
REFERENCES
11 Kim JY, Kim DI, Do YS, Lee BB, Kim YW, Shin SW, et al. Surgical treatment for congenital arteriovenous malformation: 10 years' experience1 Eur J Vasc Endovasc Surg1 2006;32:101-61
