Decomposition of PET in High Pressure Subcritical Water
6
0
0
전체 글
(2) *
(3) . †.

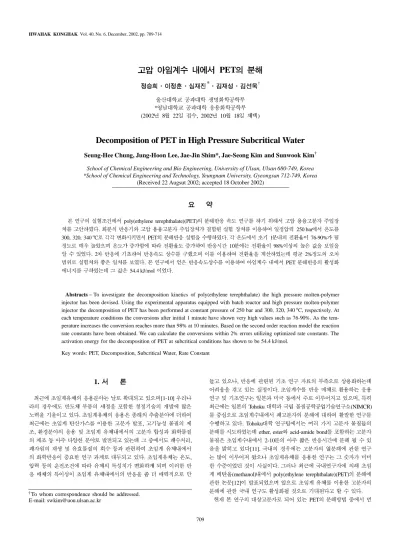

(4) (2002 8 22 , 2002 10 18 ) *. Decomposition of PET in High Pressure Subcritical Water Seung-Hee Chung, Jung-Hoon Lee, Jae-Jin Shim*, Jae-Seong Kim and Sunwook Kim† School of Chemical Engineering and Bio Engineering, University of Ulsan, Ulsan 680-749, Korea *School of Chemical Engineering and Technology, Yeungnam University, Gyeongsan 712-749, Korea (Received 22 Augsut 2002; accepted 18 October 2002). poly(ethylene terephthalate)(PET)
(5)
(6) . ! " # $ %&' () *+, 250 bar - 300, 320, 340 C. // 01234 PET
(7) 5 67 . / - 8 1 9 :;<( 76-90%$ = +. >? @ABC -$ D$E FG :;< D$) 2H 10 I :;<( 98%(J @K L5 MN5 O 6 PQ . 2R 8) J6 SBC ( () :;<5 TU IV WX 2%+ YR Z. # [K * M . \K J6 () ]NT6 9 PET
(8) ^_1 `a IV b LK 54.4 kJ/mol (Q . o. Abstracts − To investigate the decomposition kinetics of poly(ethylene terephthalate) the high pressure molten-polymer injector has been devised. Using the experimental apparatus equipped with batch reactor and high pressure molten-polymer injector the decomposition of PET has been performed at constant pressure of 250 bar and 300, 320, 340 oC, respectively. At each temperature conditions the conversions after initial 1 minute have shown very high values such as 76-90%. As the temperature increases the conversion reaches more than 98% at 10 minutes. Based on the second order reaction model the reaction rate constants have been obtained. We can calculate the conversions within 2% errors utilizing optimized rate constants. The activation energy for the decomposition of PET at subcritical conditions has shown to be 54.4 kJ/mol. Key words: PET, Decomposition, Subcritical Water, Rate Constant. 1.. . r , ^_s ( ab ?t u v L8S wxy# z {"12. W> n | 8. ab G (ab }~K NI P 1w , i }~ Tohoku MK BC M ()ab(NIMCR) > U WHI V
(9) ?
(10) 89 |+& ab> W8 2. TohokuM abI 9m <
(11) ? BCr
(12) > 8S ether, ester acid-amide bond> $%8
(13) ? BC- WHI 2-10
(14) OP -
(15) W # 2[11]. H
(16) ?
(17) ^& ab ,1 1w > & ab T ?< & W1 1 {12. Tm Hab? :(methanol)HI poly(ethylene terephthalate)(PET)
(18) ^& [12]1 +¡ ¢ > 1 &
(19) ?
(20) ^& H ab |AL (s2 £ W 2. ¤Z ~ ab v
(21) ? w PET
(22) ¥¦ UI §.
(23) [1-10] !"# $%& '"() *+ ,./# (01 2. - 34 56
(24) 789 :;<=> 1 &
(25) ? +$, (@A BC D E, F
(26) G HI
(27) ? JAK LMBC DE N OP 2Q&
(28) +R S T UI VWX, V?Y Z[ G \BC ]W NK ^_89 HI LM 1 U`& ab KD c 2. d , e/ N fREg h iAj< kL8l 1m& . n i1A1 HI # o 7 n/p q † To. whom correspondence should be addressed. E-mail: [email protected] 709.
(29)
(30) . 710. ¨ :# | 89 dimethylterephthalate(DMT)> ]W8 ¥¦# ©ª«( &2. K¬ (v
(31) ¦K v
(32) ¦1 S, (v
(33) ¦ DuPontI 8,000®/¯ X@/# <° ±²# ²8 ³fR# 1992¯ ´t& {p1 µ x DMT ]W¶1 85% ·&2 « w 2. v
(34) ¦- 2 ¸f EgI fR1 <@8 ¹- W¶ º.» (monomer) ]W< <@8q 1 101 " ¼½ ¾ ¿n
(35) D< w v L8S D< 2 £ W 2. 1 89 > 8 ¥¦- (À " Á89  < ¹ <=[AK # à 8 Ä# Åq OÆ Y tÇ º.»> ¹- W¶ ]W£ W È- iÉ# < 2. ~ abI :«2  < ÊË ÌÍ PET>
(36) £ <W
(37) 89 Yt BCÇ terephthalic acid(TPA) ethylene gylcol(EG)# ÎÏ ]W£ W W> n Ð ÐÑ8 ab> °8, ~ I OWI { ³ÒK> §¨ «8 ¤Z ° UÇ W Eg ab ?t ÓÔ +¡8? &2. WHI
(38) ?
(39) ^& ab }~ Tohoku M a b ,1 °w S Õ 2-10
(40) - H
(41) < s2 ÒK 1Ö Â ×ÆØ(mechanism) & ?t ¬ Ù# W< Ú {"12. Û +¡s # ©ª«Ü Á Ýp Þ- d OW UI
(42) # 8 Â > ß "& ?t> à W ( 82. Campanelli N[13]- PET <W
(43) 89 ab8S d < 250-280 C ÁÝp Þ- d 1 e/ & á1 Ú âã12. ä& Kao N[14] Áå & ab> °8S æç< d < 235-265 C Þ- d »B 2. Campanelli abK KaoN ab w èé - "° Q BK PET> ]
(44) ê ( ë d > {³d ì 2 # °í îï89 [AB#
(45) ð8 ¥ ¦# 8 1m& ¥¦- d < 7 ¹¬ W v ñ Ü (> <8 U ¬
(46) PET<
(47) w ò x {³# £ W Ú Dé# ó 2. {D e ]
(48) ê . (> 250 C1v 7 ¹- d <8S & 30
(49) 1v ô 1
(50) 1( õ 2-10
(51) - H ¬
(52)
(53) ?<
(54) d OW W HI # ab8 ( öI (À ¥¦ ÷<@8 - H evñ øs
(55) ?> ( Pù8 ±j *+1 úWp1 £ W 2. ¤Zû W HI PET
(56) & Â ? t< R½& 1 ü- {³v wxy (Ç&2 [ýs2. o. o. o. 2.. . ~ abI =þÍÒJ# $%89 ÁÝp <W
(57) < 1& µx° poly(ethylene terephthalate)(PET)> vBC Ð"8 9 250 bar }"& e/K O d (300 C, 320 C, 340 C) Eg 8I
(58) # 82.
(59) ?
(60) {³ rw<( R 6( Y> 1 & e
(61) ? ÿù±j> ó8S, ({³ ÒK Y8 e/ }" ø
(62) ?> ( Pù£ W w ( d h D> Ò£ W 2.
(63) s
(64) ? ù? vñ poly(ethylene terephthalate) (PET, M =28,500)1 (P)\A D O 82. [AB
(65) ð s terephthalic acid(Aldrich, 99.5%) ethylene glycol(Aldrich, 99.9%), diethylene glycol(Aldrich, 99.9%), triethylene glycol(Aldrich, 99.9.%) - "D Ú1 82. s B- 3Ó W 1> 2 e±j> 1 89 ( D¬& Ô 82. o. n. 40 6 2002 12. o. o. Fig. 1. Batch type high pressure polymer decomposition apparatus. 1. Magnetic drive 7. Thermocouple 2. Cooling line 8. Pressure sensor 3. Pressure gauge 9. Heater 4. Reaction vessel 10. Electric motor 5. Impeller 11. Thermocouple 6. Heater 12. High pressure metering pump. 2-1. ~ abI PET
(66) # ö s {³±j> Fig. 1 . H2. {³±j W Pù# ö& e "
(67) (GL Science Co., PUS-11), ?ðê Ý ±j< s e ((Reaction Engineering Co.), PET> ÿù8( ö89 ós e ø
(68) ? Pù±j b Aw 2. e ((500 ml) ?ðê Ý ±j< s Reaction Engineering # 8, d ( H R aÒs PID d E((RKC Inst. Co., REX D-900) ( Ö ²js < > 1 89 E&2. ä& ( H ïýÇ# ²j89 Ç& d v# ¥8 d E1 18 82. ~ ab {³±jI <± U`&
(69) 1 e ø
(70) ? Pù± jÇS ~ ab> è89 f
(71) ? Pù±j> ², D89 82. vdI Ç PET> e Pù8( öI øv ñ
(72) ?> 1 8S,
(73) ?> 1( öI Pù±j>
(74) ? é 1v <89 &2. ä&
(75) ?> ( H ÿù8( öI - H ( e/# 1( }" # ( H w ë# W w &2. Pù±j
(76) ?> øí( ö89 Pù±j ~ 3* <(> ²j8, H d ~> 3* PID d E((RKC Inst. Co., DX4) I E82. Pù±j H ø
(77) ?> e w W =®(piston)1 ± w =® R¥ 20 cm
(78) - =(screw) âñ w S 1
(79) - (
(80) ? ÿù# 18l 8( ö89 ós 12.
(81) ? ÿù- ( =
(82) ]R 1w, ÿùs
(83) ? øvñ q 2 =®# ¢ R° <es2. =®- Î 30 mm 1
(84) 60 mm R° Â > ²2. ø
(85) ? Pù±j< D Ãw ( H øs
(86) ?< D P ù1 Ç8( öI e/ß"1 ú`&S 1> ö89 d eI W e/kF((pressure transducer)(Gefran ISI, Inc)>
(87) ? Pù±j ²j82. 2-2. {³- Ð {³Eg l }" W> ÿù8 < d E(> 1 89 ( d > Y8 {³d <&2. ²"d ·& Ô e "
(88) > 1 89 B# Pù%.
(89) PET . ( H > Y8 e/ !2. ( d > {³d 5 Ãó
(90) v
(91) ?Ç PET e ø
(92) ? P ù ±j ± s => 1 89 PET ù?> Pù±j H ë, ± s ~ Ö <±j> 1 89
(93) ?> é«2 ¹- " 270 C <&2. 1õ ! * < #$(heating band)U Pù
(94) % < #$ d > " 270 C" <í D} &
(95) <( d 200 C" l ²"&2. 1'l &
(96) d > Þ5 1
(97) ?> ~ H Pù£ õ ~H (pÇ e/ v øs
(98) ?< =® 1 Ì )% x< Ä l %
(99) ?> Y8 e/ (H Pù8( öI1 2. (
(100) ? ÿù±j 1 e 3-way*+ &%
(101) # 1 89
(102) ?< øs # Ç8, ÿù±j d G e/1 ² "& , ·8Ü (
(103) ? ÿù±j 1 e 3-way*+ >
(104) ? ÿù±j ~ ± s =® øs PET> ( H }" Pù&2. 1 õ,
(105) ? ÿù I ( e/1 " v8l S 1# x89 ( e/# { ³8x e/«2 Þl &2. hI {³e/# "8l 5 1 -r ~ abI 250.10 bar /ö HI { ³ e/# 82. PET ÿù- 30 1H ´t8, ÿù 1 ´ts é# ( 89 # ß"82. ( dK"# $%& R K"I }"& Â Ý PET< Pùw 1 s Ô Y8 1 l Ü, ( ± s <> 0Â D¬%K Ã H ïýW> (Fí, Ö I (> 1B 23 " 1
(106) H vd îï # ´R 3Ò!2. ( G H B1 ´R vd ïý s 2 (> [AB# ]W89
(107) ð&2. [AB
(108) 𠥦- W vK v hI ·°2. § ¨ W¬& B- 9K(pore size: 2.5 µm)> 1 89 vK W v#
(109) & Ô v ½l> ß"&2. v $%s 4p A
(110) Ç terephthalic acid(TPA)> "8( ö89 Yoshioka N[15]K ü - ¥¦# 8S, t> K NH OH Ç Ô 9K89 TPA< s NH OH K PET>
(111) 8, 9 K 5- PET ½l
(112) ð# è89 T Q# ß"82. º .»Ç TPA 6(A 7 6(AÇ NH OH C ;# II <8ÜI Ý 89 ULíÜ O TPA< 89 :RS 1> 9K89
(113) &2. T;S Z:Rs U 61 ÀZ8( õ W> 1 89 <
(114) !=& Ô 80 C >?I gE> ! 2 ½l> ß"&2. ö ¥¦ Ù w@ H rw TPA ( > µOH( öI Campanelli N [13]1 & A ü1 TPA t> dimethyl sulfoxide Ç Ô 0.1 N KOH/ethanol p"% ( > ß"82. W v
(115) ð- gas chromatograph(HP 5890)> 1 89 {8 2.
(116) ð s BC(column)- SupelcoWax 10(60 mD0.32 mmD 0.53 µm) 1, >? d 220 C1 E6( d 250 C1 3 µl> Pù82. W v ÀZ8 ethylene glycol(EG)K diethylene glycol(DEG)#
(117) ð8( öI §¨ GC & «"# 8 S H ¡(internal standard) triethylene glycol(Aldrich)# 82.. Table 1. Experimental data for the PET hydrolytic decomposition Temp. (oC). Time (min). Conversion (%). COOH conc. (mmol/g PET). EG conc. (mmol/g PET). 300. 0 1 3 5 10 0 1 3 5 10 0 1 3 5 10. 68.30 76.10 89.86 92.98 96.88 71.60 85.97 94.28 93.50 98.43 81.03 90.38 95.32 97.40 98.95. 7.10 7.91 9.35 9.67 10.08 7.46 8.94 9.81 9.72 10.24 8.43 9.40 9.91 10.13 10.29. 0.26 1.39 2.72 3.39 3.77 1.01 2.33 3.35 3.61 3.52 1.75 2.22 2.41 3.62 2.16. o. o. o. 4. 4. 4. o. o. 3.. o.
(118) . ~ abI 250 bar }"& e/K O d (300 C, 320 C, 8I
(119) # {89
(120) Ô B ýý { ³Eg h FG# ©ª«H2. d , e/K ü- {³kW1Ö [ý£ W 1 ( ÿùs BK PET ½lÁ12. Campanelli o. 340 oC). o. 711. 320. 340. N[13] ab ÒK 8Ü ( ÿù& BK PET ½lÁ< 10 # Il Ü 1 ,- FG# j Ä2 ÒJ# HKS ~ abI BK PET ½lÁ> 10 ¥ íÜI {³ # W82. K¬ ab?r- ( "° ½lÁ BK PET > (H ÿù8 {³# 8( õ 1 ½lÁ> " 8l 6 W< , ~ abI ( B# }" Lwë d ·& 2 ø
(121) ? Pù±j PET> Pù8# õ Pù
(122) ? Åq OÆ e/# Y8 e/Ç 250 bar M 8 1U D< ( õ BK PET ½lÁ> "8l 5 N82. Tm PET
(123) I - ½lÁ O 8 Ä# Å q OÆ 10 1vI ¬ FG1 Ú( õ 1 , & ETq >Ó {³ÒK ¬ FG# j Ä [ ýs2. d kL h {³# W8( R ( Ý Â h { ³# W8S d > 320 C, e/# 250 bar "8 Ý Â > 200, 500, 800, 1,000 rpm kLP2. # 3
(124) "& {³ÒK> ÁÝ «Ü Ý Â < 500 rpm 1v1 Ü RF¶ 1 Ý Â ¬ ½^%# «1 2. hI Ý Â > 500 rpm 1v 8Ü BCR· ¨Q# ½£ W  > Ù# W 2 ÒJ# HR W 7 ~ abI R {³I Ý Â > 800 rpm "8 {³# W82. e/# 250 bar "8 d > kLíÜI PET # W & ÒK< Table 1 "w S }"& d I # · 8ÜI RF¶ G terephthalic acid(TPA) ethylene glycol(EG) S > ß"& ÒK> @ 12. ((t=0 min) ,-
(125) ? > Pù8 T îï89 Ù- ,ÇS
(126) ? PùK"K Ô ïýK"I
(127) s Q# &2 £ W 2. T;S Table 1 I «U1 ( RF¶1 0.683-0.810 ×2V ,# «1 w ¢ W EgK ü- o 7 ¹- d I {³# W8( ö I 3 {³¥¦I
(128) ? Pù# L8 N i& x< w [ýs2. {³?t> ý d h RF¶K EG S > & 1 Fig. 2-4 2. PET
(129) 300-340 C d /öI 10
(130) 1 H 96-99%1v ¹- RF¶# H COOH S 1Jp Ç WjÇ 10.4 mmol/g PET , Ï8 # µ W 2. Þd I Ws 2 ab?r[13, 14] abÒK ÁÝ8# õ × 2V Ó1é- ( 1
(131) H RF¶1 76-90%< " n ¹o. o. HWAHAK KONGHAK Vol. 40, No. 6, December, 2002.
(132)
(133) . 712. Fig. 2. Decomposition results of PET at 300 oC and 250 bar.. Fig. 4. Decomposition results of PET at 340 oC and 250 bar.. RF & [ý£ W S 1 I ¢ EG 1L(dimerization) & ab< Ww \& Ò J# Ù# W # ts2. {³ ?t> ð8( ö89 PET
(134) ¬Ã# ©ª«( & 2. d, e OW WHI PET
(135) B
(136) ? =þÍ ÒJ(ester linkage)1 ^w <W
(137) < }w, T ÒK TPA EG< [A µx 2[13, 14]. T;S 1 ü- <W
(138) 1Ö EG< DEG kF 1 Ã } wl ê- 2K ü1 _ W 2. ~C6H4−CO−O−C2H4−O~+H2O↔ ~C6H4−COOH+HO−C2H4−O~ (1) 2HO−C2H4−OH↔ HO−C2H4−OC2H4−OH+H2O (2). Fig. 3. Decomposition results of PET at 320 oC and 250 bar.. 1, 1m& ¤v1 }w( õ ~ abI D & e ø
(139) ? Pù±j> 8 Ä 1m& EgI  ß"1 ÷<@82 {# µ W 2. d FG# ©ª«Ü d < <£W ( 1
(140) H RF¶1 îW <%# «1 , d < 300, 320 G 340 C <% h RF¶ X , < %# «1 1 10
(141) ·8l Ü RF¶ ,- Áå& , Ï%# µ W 2. {³ ÒKI i1& - PET<
(142) Y h [( COOH ( EG S 2Z OH S < 1Jp Ã}£ [v£ W {³ ?tv Ó1> «1 2 é12. 1m& ¤v- 1 Campanelli N[13] I ¬JS, ( »(oligomer)N ÀZ Ç 89 EG S < Þl 1 °W T S < <8 l ²\S, ~ abI ü1 10
(143) 1 - . I EG ×2V < «( wx0 ]Õs2. ä& ¹ - d I EG S ¨8 [As EG diethylene glycol(DEG) o. 40 6 2002 12. {D p- Q1( 8q [AB DEG< $%w w (2) ü- 1 }w - {1q (2)û $% 8 WêpÇ º`# !(< -r( õ ¬
(144) abr - <W
(145) ( 1) ð é# 5 {"12. Campanelli N[13]- PET <W
(146) & Â Jp ab> 8 S <W
(147) " q ó& 2Ó º`# 82. T ;S 1 º`- <W
(148) RF¶1 - p W RF¶1 ×2V ,# < pJ82 £ W 2. Kao N[14]- PET <W
(149) > OW FaI W8 1 {³ ?tr# 9m <  º`# 89 ð8S, " Å q OÆ a # ó& 2Ó º`K [As bÍc{( ( ?¿n(autocatalytic) ×ÆØ# $%8 º`r # Dó82. ä& ?¿n ×ÆØ º` bÍc{( & 1Ó º`K 1/2Ó º`# Ed8S, Kao N abÒK> Ed «Ü  < Ì Õ& 2Ó º` <
(150) {³ ?t > ð£ W ?ÿn º`-  < 2 eì Þ- d EgI ÒK ð o 7 È- ÒK> «Ç2 ÒJ# HR W< 2. Kim N[12]- :HI PET
(151) ^& ab> W8S " , a q# ó& 2Ó º` {³ ÒK> f ð£ W # «2. ~ abI & {³EgI  < OP Ì G# «1 ( õ ?¿n ×ÆØ# ó8 ÄO {³ ?t ð O ½; D< Ú# gw°2. hI {³ ÒK ð 2Ó .
(152) PET . 713. º`# 89 ð# 8S TPA [AÂ ê (1) # ( 89 2 êK ü1 _ W 2. d C COOH --------------------- = kC EL CH 2O – k'C COOH C OH dt. (3). 9(I C bÍc{ ; S , C K C =þÍ ÒJK B S > ýý H, C [As EG S > &2. ä& Â vW k " Ç <W
(153) Â vW1 k'- a . Ç hJ Â vW> @2. RF¶1 ζ £ õ . B G [AB S > RF¶ %W 2K ü1 _ W 2. COOH. EL. H2O. OH. C COOH = CELi ζ, CEL = C ELi ( 1 – ζ ). (4). C H O = CH Oi – CELi ζ, COH = C COOH. (5). 2. 2. 9(I C C ( ÿùs PET H O ( S > &2. ê (4), (5)> ê (3) ù89 "8Ü ELi. 2. H2Oi. CH Oi dζ ------ = kC ELi ( 1 – ζ ) ----------- – ζ – k′CELi ζ 2 C ELi dt. (6). 2. 1 ê# p
(154) 8Ü h RF¶ kL> 2K ü- ê _ W 2. 2ζ + S – Q2ζ + S – Q ln ----------------------– ln -----------------------2ζ + S + Q t 2ζ + S + Q. 9(I S Q 2 kr + k4kr S = – -----------, Q = S – -----------k – k′ k – k′. = C ELi Q ( k – k′)t. Fig. 6. Calculated conversion of PET at 320 oC using optimized reaction rate constant.. (7). t=0. 1⁄ 2. C 1, r = -----------> @2. C H2 Oi ELi. Table 2. Optimized reaction rate constants based on second-order model Temp.(oC). k(g PET/mol/min). k'(g PET/mol/min). AARD(%)*. 300 320 340. 7.724 11.090 16.280. 0.907 4.082 13.27. 1.36 1.57 3.54. ∑ ζexp – ζc al ⁄ ζexp * ---------------------------------------n. Fig. 7. Calculated conversion of PET at 340 oC using optimized reaction rate constant.. ¢ 2Ó º`# p 8 {³ ?t> pL89  v W> b8S 1 ,r1 Table 2 "w 2. ä& Table 2 pLs  vW> 1 89 RF¶# ;& v>Ó< . S ij 2% " >Ó {³ ?t> _ W # µ W 2. 300, 320, 340 CI {³ ÒK ;j> Fig. 5-7 . kS 300 C 320 C (S I R S ô l W& ;ÒK> «1 340 C 1 5 h ;s ,1 {³j«2 Þ- ,# «1 2. d < ¹O l Ü " K a 2Ó º` ;s ,1 {³ j«2 Þl ; G# «1 ( õ ~ ab«2 ¹- d I
(155) # W8 1> ð8( öI 2 º`# p [ýs2. ~ ab> è Ù- Â vW> 1 89 Fig. 8K ü- Arrhenius o. o. o. o. Fig. 5. Calculated conversion of PET at 300 oC using optimized reaction rate constant.. HWAHAK KONGHAK Vol. 40, No. 6, December, 2002.
(156)
(157) . 714. öI 2 º`# p [ýs2 ~ ab> è Ù - Â vW> 1 89 Arrhenius plot# 8 Ù- PET <W
(158) & |AL¼ 54.4 kJ/mol ;S 1 ,Campanelli N [13] ,Ç 55.7 kJ/molK & ,# «1 2.. ~ ab &KMZÕ 4p(ab(KDno: R01-2000-000abÁ 2001M¯ F5MÝ M)ab EAÁ Y WpÆ2. 00324-0). . Fig. 8. Arrhenius plot for the hydrolytic decomposition of PET.. # 8 Ù- PET <W
(159) & |AL¼ 54.4 kJ/ ;S 1 ,- Campanelli N ,Ç 55.7 kJ/molK & ,# «1 2. æm ~ abI ó89 D& e ø
(160) ? Pù±j> | 8 {³±j G ¥¦# E3 «´8Ü ~ ab«2 ¹- d W vñ {³ <@82 [ý PET Åq1 OÆ 2Q&
(161) ?
(162) | W # ( s2. plot mol. 4..
(163) . ~ abI poly(ethylene terephthalate)(PET) <W
(164) # }"& e/K O d (300 C, 320 C, 340 C) 8I {89 {³Eg h [ABÇ terephthalic acid(TPA) ethylene gylcol(EG)
(165) $> b8 2Ó º` (& 1JpÇ ð# { 82.
(166) ?> Pù& T îï! ( RF¶1 0.683-0.810 OP ×2V ,# «S 1-
(167) ? PùK"K Ô îïK "I
(168) s Q 12. ~ ab ü1 e ø
(169) ? Pù±j> 8 ÷b8 v PET< (
(170) w òì ô «O q" e ø
(171) ? Pù±j> 8 ÄHÜ . ( dU ¬
(172) PET<
(173) w {³1 ÷<@ 8 [ýs2. ¢ W EgK ü- o 7 ¹- d I {³ # W8( öI 3 {³¥¦I
(174) ? Pù# L 8 N i& x< w 12. ~ ab d /öHI PET ( 1
(175) H RF¶1 76-90%< " n ¹H d < <% h RF¶ X ,# «1 1 10
(176) ·8l Ü RF¶ ,- 96-99% 1v ¹- RF¶# H COOH S 1JpÇ WjÇ 10.4 mmol/g PET , Ï8l s2. {³ ?t> ð8( ö89 2Ó º`# p 8 Â v W> b8S 1 ,# 1 89 v>Ó< ij 2% " Þ>Ó HI RF¶# ;£ W 2. 300 C 320 C (S I RS ôl W& ;ÒK> «1 340 C 1 5 h ;s ,1 {³j«2 Þ- ,# « 1 2. d < ¹Ol Ü " K a 2Ó º ` ;s ,1 {³j«2 Þl ; G# «1 ( õ ~ ab«2 ¹- d I
(177) # W8 1> ð8( 250 bar. o. o. o. o. o. o. 40 6 2002 12. CCOOH CEL CELi CH2O CH2Oi COH. : concentration of carboxylic acid [mmol/gPET] : concentration of ester linkage [mmol/gPET] : initial concentration of ester linkage [mmol/gPET] : concentration of water [mmol/gPET] : initial concentration of water [mmol/gPET] : concentration of ethylene glycol [mmol/gPET]. k k' r t. : forward reaction rate constant [g PET/mol/min] : backward reaction rate constant [g PET/mol/min] : ratio of initial concentrations of water and ester linkage : time [min].
(178) ζ. : conversion. 1. Shanableh, A. and Gloyna, E. F.: Water Sci. Technol., 23, 389(1991). 2. Li, R., Savage, P. E. and Szumukler, D.: AIChE J., 39, 1(1993). 3. Holgate, H. R., Meyer, J. C. and Tester, J. W.: AIChE J., 41, 637(1995). 4. Lawson, J. R. and Klein, M. T.: Ind. Eng. Chem. Fundam., 24, 204 (1985). 5. Watanabe, M., Hirakoso, H., Sawamoto, S., Adschiri, T. and Arai, K.: Proceeding of 4th ISSF, B, 591(1997). 6. Klein, M. T., Izzo, B., Harrell, C. L. and Adschiri, T.: Proceeding of 4th ISSF, B, 543(1997). 7. Sasaki, M., Kabyemela, B. M., Adschiri, T., Malaluan, R., Hirose, S., Takeda, N. and Arai, K.: Proceeding of 4th ISSF, B, 583(1997). 8. Kabyemala, B. M., Takigawa, M., Adschiri, T., Malaluan, R. M. and Arai, K.: Proceeding of 4th ISSF, B, 547(1997). 9. Kabyemala, B. M., Takigawa, M., Adschiri, T., Malaluan, R. M. and Arai, K.: Ind. Eng. Chem. Res., 36, 2025(1997). 10. Kabyemala, B. M., Takigawa, M., Adschiri, T., Malaluan, R. M. and Arai, K.: Ind. Eng. Chem. Res., 36, 1552(1997). 11. Adschiri, T., Sato, O., Machida, K., Saito, N. and Arai, K.: Kagakuikougaku, 23, 505(1997). 12. Kim, B.-K., Hwang, G.-C., Bae, S.-Y., Yi, S.-C. and Kumazawa, H.: J. Appl. Polym. Sci., 81, 2101(2001). 13. Campanelli, J. R., Kamal, M. R. and Cooper, D. G.: J. Appl. Polym. Sci., 48, 443(1993). 14. Kao, C.-Y., Wan, B.-Z. and Cheng, W.-H.: Ind. Eng. Chem. Res., 37, 1228(1998). 15. Yoshioka, T., Okayama, N. and Okuwaki, A.: Ind. Eng. Chem. Res., 37, 336(1998)..
(179)
관련 문서
