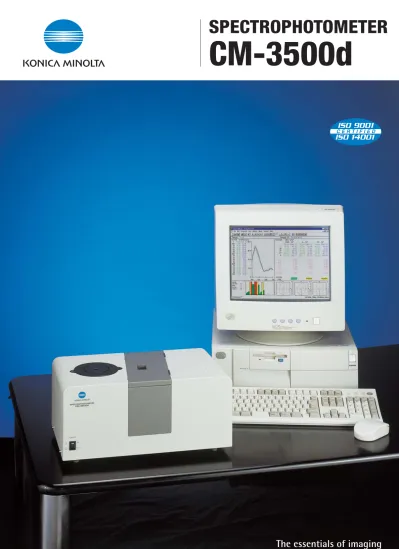

SPECTROPHOTOMETER
CM-3500d
Mac OS 9.2J illustrator 10J
CM-3500d_cover.ai 2003.10.3
Windows® is a trademark of Microsoft Corporation in the USA and other countries.
1
3 4 5
2
6
7
8°
8°
SCE SCI
Mac OS 9.2J illustrator 10J CM-3500d(E)_inside.ai 2003.12.11
Reflectance measurements Transmittance measurements
Variety of measurement functions
The illumination/viewing geometry meets ISO and DIN standards for d/8 (diffuse illumination/8°
viewing angle) geometry and also corresponds to CIE and ASTM standards for d/0 (diffuse illumination/0° viewing angle) geometry. The top port design allows specimens to be simply placed on top of the unit, making it easy to measure the reflectance of not only solids but also powders or pastes.
■ SCI/SCE switchable
SCI (specular component included) measurements minimize the influence of surface conditions on measured values, making it suitable for color-matching applications. SCE (specular component excluded) measurements correspond closely to professional visual evaluation and are useful when differences in gloss are encountered.
■ Changeable measurement areas
Select measurement areas of ø8mm, ø30mm, or ø3mm (optional accessory) according to the measurement application.
■ Measurements of powders and pastes
Measurements of powders and pastes are easy using the Petri Dish Set CM-A126 (optional accessory).
Illumination/viewing system
■ Pre-flash function
The pre-flash function fires the xenon tube at a low level (2% of full flash output) at the start of the measurement cycle to check the specimen reflectance and determine the proper amount of light to use for the measurement. This improves repeatability for low- reflectance specimens, and also extends the life of the xenon tube.
■ Double-beam feedback system
The light emitted by the xenon lamp is monitored directly to eliminate the effects of slight changes in illumination or spectral characteristics, and to ensure high-accuracy measurements.
■ Shutter-equipped integrating sphere port
The measurement port of the integrating sphere is equipped with a shutter which is normally closed to prevent dust or dirt from entering the integrating sphere. The shutter automatically opens and closes when a measurement is taken.
1 Optical system for measuring specimen 2 Mirror for measuring specimen 3 Pulsed xenon lamp
4 UV cutoff filter 5 Integrating sphere
6 Optical fiber for monitoring illumination 7 Transmittance specimen chamber
The spectral transmittance of liquids or of specimens in sheet or plate form can be measured using d/0 (diffuse illumination/0°
viewing angle) geometry.
A Multi-Function Top-Port Benchtop Spectrophotometer with Computer Control for Easy Operation
The Konica Minolta CM-3500d Spectrophotometer is a highly accurate, top-port instrument designed for a broad range of color measurement applications. Control is performed via computer software to provide simple, efficient color control from the research laboratory to the factory floor.
For transmittance measurements
Optional Accessories
Transmittance Specimen Holder CM-A96
Holds specimens in place for transmittance measurements. Maximum specimen thick- ness: 22.5mm
Glass Cell CM-A97/CM-A98/CM-A99
Hold liquid specimens for transmittance meas- urements. Optical path lengths: 2mm (CM- A97), 10mm (CM-A98), and 20mm (CM-A99)
Transmittance Zero Calibration Plate CM-A100
For performing zero calibration for transmit- tance measurements.
Petri Dish Set CM-A126
Includes Target Mask (for Petri Dish) CM- A127, Petri Dish CM-A128, and Calibration Glass (for Petri Dish) CM-A129.
Color Tiles
14 color tiles are available: White, Pale grey, Middle grey, Difference grey, Deep grey, Deep pink, Red, Orange, Bright yellow, Green, Difference green, Cyan, Deep blue, Black. Original materials of these tiles are supplied by BCRA.
Other accessories
Sample Viewing Mirror CM-A125
Allows the measure- ment aperture to be seen from the inside for exact positioning of the specimen for reflectance measure- ments.
Target Mask CM-A121
For measurements of ø3mm areas.
SpectraMagic is a new, versatile color quality control package for KONICA MINOLTA Spectrophotometers, available in English, German, French, and Japanese. It is a 32-bit program compatible with Windows
®2000/98/95 and WindowsNT
®ver.4.0. SpectraMagic offers a wide range of functions and graphical displays for the evaluation and control of color including instrument control, colorimetric and spectral data, color tolerancing, and statistical calculations like trend charts and histograms.
•
6 customizable report screens to display color data and indices; can be as simple or as complex as required.•
Complete elliptical tolerancing capability including CMC tolerancing and the advanced“best fit” technique to statistically calculate tolerances based on batch history data.
•
Macros to automate repetitive tasks and guide technicians through special test procedures; message boxes give instruction on what to do next.•
Send mail allows you to communicate your color data worldwide, directly from the program.•
Export option stores your choice of color data in Calculated Results and From Database for further processing, reporting, and calculation.•
Over 50 indices including whiteness, yellowness, haze, chromatic strength at maximum absorption.For measurements of powders or pastes
Mac OS 9.2J illustrator 10J
CM-3500d(E)_back.ai 2003.12.11
17 20 35.2 30.220
190 173 187.6
112.5
95.5154.5 106
413 240
41.8
413 × 190 × 240mm (16-15/16 × 7-1/2 × 9-7/16 in.)
Weight 10kg (22 lb.)
Standard accessories White Calibration Plate CM-A120; Target Mask (ø8mm) CM-A122;
Target Mask (ø30mm) CM-A123; Zero Calibration Box CM-A124;
Carrying Case CM-A67; AC Adapter AC-A12; RS-232C Cable (2m/6.6 ft., 9-pin, for IBM PC) IF-A12
Specifications are subject to change without notice.
Dimensions (W × H × D)
Approximately 2.5 sec. (to start of data output) Half bandwidth
Wavelength range
Approx. 20nm average Wavelength pitch 20nm
Measuring geometry
400 to 700nm
Photometric range 0 to 175%; Resolution: 0.01%
Light source Pulsed xenon arc lamp Measurement time
Illumination/
measurement areas Specimen conditions for transmittance measurements
RS-232C standard
Reflectance: Changeable; ø36mm illumination/ø30mm measurement or ø11mm illumination/ø8mm measurement Transmittance: Approx. ø22mm
Sheet, plate, or liquid (in container) form up to a maximum thickness of approximately 50mm
Repeatability When white calibration plate is measured 30 times at 10-sec.
intervals after white calibration has been performed:
Spectral reflectance: Standard deviation within 0.20%
Chromaticity: Standard deviation within ∆E*ab 0.05 Detector
Reflectance: d/8 (diffuse illumination/8°viewing angle);
SCI (specular component included)/SCE (specular component excluded) switchable; meets ISO and DIN standards for d/8 geometry; also meets CIE and ASTM standards for d/0 geometry Transmittance: d/0 (diffuse illumination/0°viewing angle) Dual 18-element silicon photodiode array with wedge-shape continuous interference filter
Minimum interval between measurements
3 sec.
Spectral reflectance: Within ±0.30%/°C Color difference: Within ∆E*ab 0.05/°C Temperature drift
Interface
Power AC 100V/120V/230V 50/60Hz (using included AC adapter) 0 to 40°C, relative humidity 85% or less (at 35°C) with no condensation Operating temperature/
humiditya range
-20 to 45°C, relative humidity 85% or less (at 35°C) with no condensation Storage temperature/
humidity range Inter-instrument
agreement (LAV) mean ∆E*ab 0.15 (typical) based on 12 BCRA Series II color tiles compared to values measured with master body.
Indices Displays
Metamerism index: CIE, DIN 6172; Whiteness index / index difference: CIE, ASTM E313-1973, ASTM E313-1996, Berger, Hunter, Stensby, Taube; Tint / tint difference: CIE, ASTM E313-1996; Yellowness index / index difference:
ASTM D1925, ASTM E313-1973, ASTM E313-1996, DIN 6167; Strength:
Apparent, Chromatic at maximum absorption or user Wavelength, Equal apparent, Pseudo Tristimulus; TAPPI brightness / brightness difference;
Dominant Wavelength / Excitation Purity; ISO105.A04(E): Stain Test, 105.A05.2:
Gray Scale, 105.A06: Standard Depth; Opacity: Infinite thickness (paper backing), contrast (89% tile backing); Correlated Haze: ASTM D1003; Shade sort: 555, Yardage, Total Yardage; NBS100, NBS200, Rx Ry Rz, Ganz WI, Ganz Tint Color / color-
difference notations CIE Yxy(XYZ), CIE L*a*b*, CIE L*C*h, CIE L*u*v*, Hunter Lab, FMC-2, CMC, CIE 94, Munsell
Applicable Models
Workset Table, Index Data Table, Color Graph, Rfl/Trn View, Trend Graph, Database Table Observer: CIE 2° and 10° Standard Observers
Illuminants: CIE Standard Illuminants A, C, D65, D55, and D75; CIE Fluorescent Illuminants F2, F6, F7, F8, F10, F11, and F12; Ultralume U50
Tolerance Settings Elliptical tolerance, box tolerance, pass / warn / fail criteria
Minimum System
Requirements OS: Microsoft Windows 98, Windows 95, Windows NT ver.4.0 CPU: Pentium 166MHz or higher Memory: 32MB RAM Hard disk: At least 20MB free space Parallel port to connect protecting key CD-ROM drive: 4x speed or higher Display: SVGA (800 x 600), 256-color or higher Other Average measurement, remote measurement (using measuring buttons of CM-500 series or CM-
2000 series models), automatic naming, macro, online help, password protection, target database
Specifications subject to change without notice.
Observer / Illuminant Conditions
CM-500 series*, CM-2000 series, CM-3500d, CM-3600d, CM-3700 series (* except for CM-512m series)
AEFFPK Printed in Japan 9242-4852-11
2003 KONICA MINOLTA SENSING, INC. 8
3-91, Daisennishimachi, Sakai.Osaka 590-8551, Japan
Konica Minolta Photo Imaging U.S.A., Inc. 725 Darlington Avenue, Mahwah, NJ 07430, U.S.A. Phone: 888-473-2656 (in USA), 201-529-6060 (outside USA) FAX: 201-529-6070 Konica Minolta Photo Imaging Canada, Inc. 1329 Meyerside Drive,Mississauga, Ontario L5T 1C9, Canada Phone: 905-670-7722 FAX: 905-795-8234 Konica Minolta Photo Imaging Europe GmbH Europaallee 17, 30855 Langenhagen, Germany Phone: 0511-740440 FAX: 0511-741050
Konica Minolta Photo Imaging France S.A.S. Paris Nord II, 385, rue de la Belle-Etoile, B.P. 50077, F-95948 Roissy C.D.G. Cedex, France Phone: 01-49386550 / 01-30866161 FAX: 01-48638069 / 01-30866280 Konica Minolta Photo Imaging UK Ltd. Precedent Drive, Rooksley Park, Milton Keynes United Kingdom Phone: 01-908200400 FAX: 01-908618662 Konica Minolta Photo Imaging Austria GmbH Amalienstrasse 59-61, 1131 Vienna, Austria Phone: 01-87882-430 FAX: 01-87882-431
Konica Minolta Photo Imaging Benelux B.V. Postbus 6000, 3600 HA Maarssen, The Netherlands Phone: 030-2470860 FAX: 030-2470861 Konica Minolta Photo Imaging (Schweiz)AG Riedstrasse 6, 8953 Dietikon, Switzerland Phone: 01-7403727 FAX: 01-7422350
Konica Minolta Business Solutions Italia S.p.A. Via Stephenson 37, 20157, Milano, Italy Phone: 02-39011-1 FAX: 02-39011-219
Konica Minolta Photo Imaging Svenska AB Solnastrandvägen 3, P.O.Box 9058 S-17109, Solna, Sweden Phone: 08-627-7650 FAX: 08-627-7685 Konica Minolta Photo Imaging (HK)Ltd. Room 1818, Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Phone: 852-34137508 FAX: 852-34137509
Shanghai Office Rm 1211, Ruijin Building No.205 Maoming Road (S) Shanghai 20020, China Phone: 021-64720496 FAX: 021-64720214 Konica Minolta Photo Imaging Asia HQ Pte Ltd. 10, Teban Gardens Crescent, Singapore 608923 Phone: +65 6563-5533 FAX: +65 6560-9721
KONICA MINOLTA SENSING, INC. Seoul Office 801, Chung-Jin Bldg., 475-22, BangBae-Dong, Seocho-ku, Seoul, Korea Phone: 02-523-9726 FAX: 02-523-9729 Computer
CM-A98Cell (10mm) CM-A97Cell
(2mm)
Transmittance Zero Calibration Plate CM-A100
Transmittance Specimen Holder
CM-A96 Target Mask
CM-A121 ( 3mm)
Target Mask CM-A122
( 8mm)
Target Mask CM-A123 ( 30mm)
AC Adapter AC-A12
Carrying Case CM-A67 (for accessories)
Target Mask (for Petri Dish)
CM-A127
Petri Dish
CM-A128 Calibration Glass (for Petri Dish)
CM-A129 Spectrophotometer
CM-3500d White
Calibration Plate CM-A120
Zero Calibration Box
CM-A124
Sample Viewing Mirror
CM-A125
CM-A99Cell (20mm) Standard
accessories Optional accessories Petri Dish Set CM-A126
System Diagram
Specifications (CM-3500d) Specifications (SpectraMagic)
RS-232C Cable IF-A12 (for IBM PC)
RS-232C Cables IF-A11 to IF-A15 Color Tiles
Plastic Cell CM-A131 (10mm; set for 100) Plastic Cell
CM-A130 (2mm; set for 100)
Plastic Cell CM-A132 (20mm; set for 100) Software
System Diagram
