Spherical-shaped Zn2SiO4:Mn Phosphor Particles with Gd3+/Li+ Codopant

전체 글

(1)HWAHAK KONGHAK Vol. 40, No. 6, December, 2002, pp. 752-756. Gd3+/Li+. Zn SiO :Mn

(2) 2. 4.

(3) * †. .

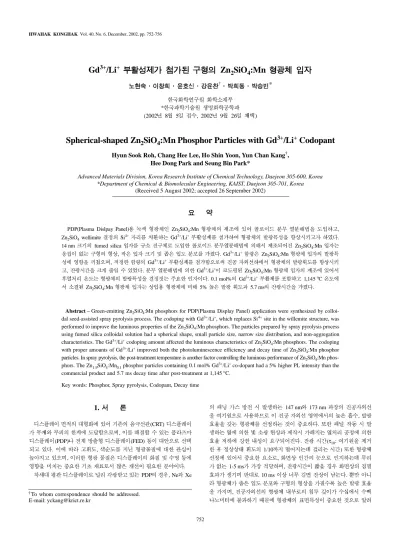

(4) (2002 8 5 , 2002 9 26 ) *. Spherical-shaped Zn2SiO4:Mn Phosphor Particles with Gd3+/Li+ Codopant Hyun Sook Roh, Chang Hee Lee, Ho Shin Yoon, Yun Chan Kang†, Hee Dong Park and Seung Bin Park* Advanced Materials Division, Korea Research Institute of Chemical Technology, Daejeon 305-600, Korea *Department of Chemical & Biomolecular Engineering, KAIST, Daejeon 305-701, Korea (Received 5 August 2002; accepted 26 September 2002). Zn SiO :Mn

(5) , !"# Gd /Li $%& '() *+& ,-./ 01. 23 45 67 8 9 : ; Zn SiO :Mn # <= ># 7 - ?@ 23 A B@ C (D1. Gd /Li EF@ Zn SiO :Mn *+ & G, HIJK L8 EF Gd /Li $%& '(EJM ;N OP 9 *Q ,-./ R.S 2T UV W

(6) X1. 8 Gd /Li YZ[ Zn SiO :Mn

(7) 9 \] ^# *+& _# `a8 1. 0.1 mol% Gd /Li $% CE 1,145 C ^ 9 5[ Zn SiO :Mn # -b c 5% d@ * Qe 5.7 ms R.S (D1. PDP(Plasma Dislpay Panel). . Zn2SiO4 wellimite Si4+ 14 nm fumed silica , , ,. 2 3+. 4 +. 2. 3+. 2. 3+. 4. +. 3+. +. 2. 3+. 2. 4. +. 4. +. o. 4. Abstract − Green-emitting Zn2SiO4:Mn phosphors for PDP(Plasma Display Panel) application were synthesized by colloidal seed-assisted spray pyrolysis process. The codoping with Gd3+/Li+, which replaces Si4+ site in the willemite structure, was performed to improve the luminous properties of the Zn2SiO4:Mn phosphors. The particles prepared by spray pyrolysis process using fumed silica colloidal solution had a spherical shape, small particle size, narrow size distribution, and non-aggregation characteristics. The Gd3+/Li+ codoping amount affected the luminous characteristics of Zn2SiO4:Mn phosphors. The codoping with proper amounts of Gd3+/Li+ improved both the photoluminescence efficiency and decay time of Zn2SiO4:Mn phosphor particles. In spray pyrolysis, the post-treatment temperature is another factor controlling the luminous performance of Zn2SiO4:Mn phosphors. The Zn1.9SiO4:Mn0.1 phosphor particles containing 0.1 mol% Gd3+/Li+ co-dopant had a 5% higher PL intensity than the commercial product and 5.7 ms decay time after post-treatment at 1,145 oC. Key words: Phosphor, Spray pyrolysis, Codopant, Decay time. 1.. . bc .- d efg( 147 nm 173 nm hi jklm I no ! pqgr! jk lm Gs

(8) Q @D t', e< uvI w( <x# yg( z LMg5. { b[ |} d e fg( ~

(9) < a |d $:( ~\ ky

(10) uv g

(11) M3j5. < d(τ : noI y 7 1/10: :( \( d) { <x y

(12) Q LM M!, ! :g( \ ( 1-5 ms i gB, <d I _` ua fB ! 10 ms (5. A ) <x ¡D ¢ U£ I >'¤ @D e< uv I :B, jklm <x ! ¥¦ § '¨

(13) Q '© ,ªJ«

(14) ¬ag ®

(15) <x ¯° LM z ! ±².

(16) (CRT)

(17) !", # $%& ' ( )*+ (PDP), - ./ (FED) 0 1 ! 2 34 5.

(18) 6) 47, 89# :; <=>

(19) ? @A:4 B, C < =>D > E 'F 0

(20) GHI JK( LM N OP!Q RD S TM UV5. WX YZ ! [\ ]<^4 ( PDP _`, Nea Xe. 10. † To. whom correspondence should be addressed. E-mail: [email protected] 752.

(21) Gd3+/Li+. Zn SiO :Mn

(22) 2. ³ 5. O 1-5 µm p ¢# :( <x b[ £k y

(23) Q i ´ z ! µ¶·5. 6)Q ¡D ¢# j. <x# ¸g ¹ nC : ¸.º» q3:4 5.. <x ¼kyD m

(24) :# ½x, ¾ ua ! t' gn d< I ./g¤ %y ¿ ! ÀÁg4 ¢ ÀÁ <x# Â( .ºI 2g( z LMgB, { <x %yiI ÃjdÄB ÅD Æ

(25) Q Ç Á,( Ç=a ¸kyI yg( z LMg5. <x °D È ¸ .º

(26) 6 ) É Ê`3(, i [\ q34 ( 4ºD ky Ëg 4 Ì fÍ qg,, ¢l ÎÍ\ Ér! ÀÁ ¸ ¼=I » ¹$Q( @D ÇÆ id ~\ ay E UÏay TMgB, ! $ 4º

(27) $ Ð:( ¢l( E É ¸´ ²`B ¢l ¯ Ñ3, ¬9= ¥¦g( 0 ËI w(5. C ®I $%g ¹$ 5Ò ¸.º » d, Ó34 5[1-3]. eD Ô5 SÕ UÖ°I w( <x ¸# Mg(, Ç= q$Õ q×I UdØ JX × ! Ù , # Ú¸, U$ E %y ayI Û ¢l# ¸g( U ~U $ºD ÇÜ ( JX <x ¢l# ¸& ' ( .º ! ÝÞ

(28) [\ ]<^4 5[4-6]. U ~U$

(29) Q i LM z D UÖ É# g( ß5. °à U~U$ kyI á$Q <x UÖ»I Ì ! ¼g ¹$Q( iK É â , ãx äå â, xæd ç 0 ! ¸ ¸Ú Ô5 ~è$: ®

(30) <x éê ²ëj5. 6)Q 4Æ

(31) I ä:g ¹$Q( Kì ¸ UÖ ¼ TMg5. O PDPq í8 <=>! i R pq3:( => Zn SiO :Mn _` jklm g

(32) Q e< 7, 89 E ~ 1 y `' °I :(

(33) <d 4, .- -î @ D ®I :4 5[7-8]. C ®I $%g ¹ .1 !", 2 ï =>I ðg, UÖ E ¯°I Ý ! " <=> lx °I Sg( .ºa ñ!ã <x ÔòI ó8, ñ!ã <x# Seg4l g( .1 jô34 5[9-13]. Zn SiO :Mn <x e<°I HdÄ

(34) ¼ ¾!( ` Zn l\# Kõg( -öåÆa ±÷\ øöå o Á ! ù ±²³ 5. Si l\# Kõgn e<uv

(35) úy GHI JK( oò ! Ga, Al, Ge 0 5. ÝÞ van der Kolk 0[12] D Ba , Cd , Gd /Li , Al /Li , Fe Fe #(Zn Mn )SiO

(36) ð gn <da e<uv

(37) JK( GHI Ô4gû5. ü Ó

(38) Q( ,ªJ« É fumed ý\þ# ÿ -x! pq g( !Â U ~U$ºI ¢, PDPq í8 <x Zn SiO :Mn. <x ¢l# ¸g4, <x ¢l e<°I HdÄ ¹$ Si l\# Kõg( z ! ±²j ¾(co-dopant) Gd /Li # ð gû B ¾ ð Zn SiO :Mn <x e<uv E <d

(39) JK( GH

(40) $Q Ô4gû5. 2. 2. 4. 4. 2+. 4+. 2+. 2+. 3+. +. 3+. +. 2+. 3+. 1.94. 0.05. 4. 2. 4+. 3+. 2. 2.. 4. +. 4. . ü Ó

(41) Q( U ~U$º i Á UÖ ¸iK N h U~U$ iK# ¢gn Zn SiO :Mn <x ¢l# ¸gû 5. qÌ Nh U ~U$ iK( × ef U, Ç E ¢l ' U ! ,5. × efUD 1.7 MHz j}'

(42) Q |}g ( 6S Nh j}l# :( kq # S¸gn |gû 5. ×I efdÄ( }1, j}l

(43) Q ~ efgr! Æ I ¹$Q Æ =I Óå ! j}l ¹! ² q× 2. 4. 753. 4. Æ# Áyg ä:gû5. C Nh U × ef iK

(44) $ ef3( × YÀ É( 5 µm gB ÀÁ É U£# :( z ! ±²³ 5. Nh × efiK

(45) Q fÕ ×D ã x

(46) $ 4Æ Ç! ã3( ãx!( î k # pqgû5. Ç!( GI pqgû B Ç _D 55 mm, ( 1,200 mm5. ¸Õ ¢l(

(47) ©T«# pqgn £Ügû5. Zn Si O :Mn , Gd /Li <x# ¸g ¹ U ~U$ k y

(48) qÕ q×D Ì Zn >Í E Mn AXÍ íA ( âæ'

(49) YÀ 14 nm É fumed ý\þ ¢l# UÍdØ ¸g û B, ý\þ !Â ¢l# 1y dÄ ¹$ q×I Uà gû5. q× ( 2.0 M ! 4ygû B Mn ï ( x=0.1! 4ygû5. Zn SiO willemite %y

(50) Q Si l\# x g( Gd codoping ( y=0

(51) Q 0.02: d B -g Ô yI ¹$ Gd }Ì Li I ðgû5. Gd E Li -x!( > ÍI pqgû5. Ç Æ( 900 C!, ãx k ä åI 45 l/min! gûI Ç

(52) Q xædD 0.6Nû5. U ~U$º

(53) Q Ðj Zn SiO :Mn ¢l( %y ï=> ¾ # ¹$Q -!

(54) Q 1,100-1,160 C

(55) Q 5d }1 ~ \ ayI 5. { UÖ í8e<I Ð ¹$Q õo U¹ (5% H /N ¼)g

(56) Q 775 C

(57) Q 1d }1 õo \# gû5. ¢l %y¸ I U g ¹$ X- ´(X-ray diffractometer) # pqgû B, UÖ E ¢lÉ# Îg ¹gn PHILIPS p XL 30S FEG p-lJ_(Scanning Electron Microscopy)I pq, UÖI gû5. <x e< °D D E Kr # i 4jk <U< <(VUV photoluminescence spectrometer)! ý PDP õ_a äp jk lm Gs 147 nm n<o ! ygû4, <d yD Xe # i Tektronix TDS 340A# pqgû5. È\4 q Zn SiO :Mn <x# pq, ý

(58) $ ¸Õ <x e<°a , U gû5. 3+. 2-x. 1-y. 4. x. + y. y. 4+. 2. 4. 3+. 3+. +. o. 2. 4. o. o. 2. 2. 2. 2. 3.. 4.

(59) . í8 <x( q ! pq3

(60) <d I :( ( lm {( jklm Gs

(61) Q n d

(62) Mn Mn ! Æ 3Q ef3( lä-l(free electron) Zn SiO ½x - : -3!5 5d Mn O%¼gn Mn I f g( d M3 ®5. { 2 ÿ"(selection rule)

(63) g T → A - lx ö: -(forbidden transition) ®

(64) <d j54 ±²³ 5. Á ! Zn SiO :Mn. <x <dD Mn

(65) 6) ç54 Ô4 3 5. ( ½x #l

(66) Mn Æ ' RA³Q Mn Æ» p \ ë: 34 ! $ 3( Mn-Mn Æ$» %| q

(67) z ! $ 34 5[7]. ÈC, @D Mn Æ( e< g# ³& ®

(68) e<# HdÄQ }d

(69) < dI ' ¹ RD ª(» jô34 5. ü Ó

(70) Q( Zn SiO :Mn <x ¢l ¸

(71) fumed silica ¢l# ÿ - x! pqg( !Â U ~U$ºI ¢g4 Zn SiO willemite %y¸

(72) Q Si l\# Kõg( Gd /Li ¾# ðgn jk lm g

(73) Q e< <dI HdÄ4l gû5. Fig. 1D Gd /Li ð

(74) 6) Zn Si O :Mn , Gd /Li <x ¢l <d *+5. ½Ù ¢l( 900 C

(75) Q ¸3 1,145 C

(76) Q 5d }1 ~\ ayI 5. Gd /Li ð( Zn SiO :Mn <x ¢l <d ç

(77) ,` ua! B, Gd /Li ¾ Ì â

(78) 6) Zn SiO :Mn <x <d Zn2SiO4:Mn. 2+. 3+. 2. 3+. 4. 6. 1. 1. 2. 2. 4. 4. 2. 2+. 3+. 3+. 4. +. +. 1.9. 1-y. 4. 0.1 o. o. 2 3+. 4. 2+. y. 3+. y. +. 4 +. 2. 4. HWAHAK KONGHAK Vol. 40, No. 6, December, 2002.

(79) 754. . '»!5. Gd /Li Ì y=0.005(0.5 mol%) Á

(80) i D <dI Ôû B <dD q Zn SiO :Mn. <x(4.6 ms) äp 4.8 msI ,-!5. ü Ó ¸ ¸Úg

(81) Q Gd /Li ¾ ð( Zn SiO :Mn <x <dI 2.5 ms '( ua# :( z ! Î3!5. Fig. 2

(82) Q( Gd /Li ¾ ð <x ¢l e<

(83) JK( GH

(84) $ ±AÔ.5. ½Ù ¢l( 1,145 C

(85) Q ~ \ ayI 5. <x ¢l( 147 nm jklm

(86) $ n 3! B Gd /Li ¾ ðÌ

(87) ½/ 524 nm

(88) Q í8 e<I Ôû5. È0

(89) Q ,-1 z+ Gd /Li ¾# ð & _`, ¾# ðg: 2D <x

(90) $Q é @D e< # ,-! B, 0.1 mol% ðd i @D e<# Ôû5. ( U ~U$º

(91) $Q ¸Õ Zn SiO :Mn <x _` Gd /Li ¾# ð !" VUVg

(92) Q e<7 <dI }d

(93) Hd3 ' 5( zI ,-45. ÈC, 0.15 mol% ¾ ð d

(94) ( e< 7 &à² çg( ( ¢l (Fig. 3) Ma XRD(Fig. 4)

(95) ( 3: 2: ¬9= O

(96) z ! 5Õ5. Fig. 3

(97) Q( Gd /Li ¾ ð U ~U$º

(98) $Q ¸3j Zn SiO :Mn <x E É

(99) JK( GH

(100) $Q ±AÔ.5. ½Ù ¢l( 1,145 C

(101) Q ~\ ayI 5. Fumed silica# £ !Â q× !« ¸3j Zn SiO :Mn <x ¢l( jÕ 67 a |D ¢lÉ(YÀ 1.6 µm) E ÇÜ ( ÀÁ ¢ U£# 8( zI Î& ' !5. ( ×

(102) Q ÀÁg UÍÕ fumed silica !Â ¢l öå /I ¹ 9(seed)s&I !" öå × ¯ A ) ×

(103) Q :48 ÀÁg /; !" jÕ ¢l ¸3! ®5. Gd /Li ¾ ð( ¢l

(104) É GHI J5. JÌ(0.1 mol% g) Gd /Li ¾# ä <x ¢l _`, ÇÜ ( I ä:gû ,, Gd /Li ¾ Ì 0.1 mol% _`

(105) ( ¢l ÇÜ Á, d|< B, ¾ Ì â

(106) 6) ¢l( 3+. +. 2. 3+. +. 2. 3+. 4. +. o. 3+. +. 3+. 2. 3+. Fig. 1. Decay curves of the Zn2SiO4:Mn phosphors with different Gd3+/ Li+ contents.. +. 4. +. 3+. 2. +. 4. o. 2. 3+. +. 3+. Fig. 2. Photoluminescence emission spectra of Gd3+ /Li+ co-doped and non co-doped Zn2SiO4:Mn phosphor particles.. 3+. Fig. 3. SEM photographs of Zn2SiO4:Mn phosphors for different Gd3+/Li+ contents.. 40 6 2002 12. +. 4. +. 4.

(107) Gd3+/Li+. Zn SiO :Mn

(108) 2. Fig. 4. XRD spectra of the Gd3+/Li+ co-doped and non co-doped Zn2SiO4:Mn phosphor particles.. 755. 4. Fig. 6. Decay curves of Gd3+/Li+ co-doped Zn2SiO4:Mn phosphors posttreated at different temperatures.. l»D 1,145 C ~\ Æ

(109) Q ½/ 9' willemite %yI Ð ! B 1,200 C 4Æ

(110) Q ~\ _`

(111) X- Í@ 1,100 C

(112) Q ~\ _` A %yI Ôû 5. ( U ~U$º

(113) $Q ¸3( <x( 1,300 C 4Æ

(114) Q ~\ ayI TM! g( 4 Ç

(115) $ ! Å D Æ

(116) Q %y `'g4 ËÁ 3( zI J 5. ( U ~U$º _` ¸g4lg( => U ×

(117) Q Ul Ë¹! ÀÁg U£3 ®5. Gd /Li ¾ ð( Zn SiO :Mn <x ¢l %y

(118) ( É GHI JK: 2. B XRD

(119) Q( ¬9= O Î3: 2.5. U ~U$º

(120) $Q ¸Õ Zn SiO :Mn <x

(121) Q ~\ Æ( Gd /Li ¾ B <x e<°

(122) GHI JK( { 5) l C ' 5. Fig. 5, 6 E 7

(123) Q( ~\ Æ Zn SiO :Mn, 0.1 mol% Gd/Li <x ¢l E e<°

(124) JK( GH

(125) $Q ±AÔ.5. Fig. 5

(126) Q ÔD 1,100 C ~\ Æ

(127) Q( Ç Ü ( 67 ¢l Ð· ,, ~\ Æ â

(128) 6)Q ¢l ÇÜ y âg d|$ 1,160 C ~\ Æ

(129) Q( oE I ä:g: =g4 ¬ÿ" ÇÜÕ ¢l Ð·5. Fig. 6D ~\ Æ

(130) 6) Zn SiO :Mn, 0.1mol% Gd/Li <x ¢l <dI ,-4 ÈE5. ~\ Æ â

(131) 6) Q ¢l <d '»! B, 1,160 C

(132) Q ~\# F ¢ l _`, q Zn SiO :Mn <x ¢l äp <d(4.6 ms) I ,-!5. ( @D ~\ Æ Gd /Li ¾ Si l \! KõI G !" Gd /Li ¾ codoping ua éê ù ,-H ® ! pP Õ5. Fig. 7

(133) Q( ~\ Æ

(134) 6) Zn SiO :Mn, 0.1 mol% Gd/Li. <x ¢l e< *+I ,-!5. ¢l( 147 nm jklm

(135) $ n 3! B ~\ Æ

(136) ½/ 524 nm

(137) Q í8e<I Ôû5. ¢l e<( ~\ Æ

(138) É GHI ^ . B ´ Æ

(139) Q ~\Õ ¢l _`, q <x

(140) $ @D e<# ·5. 1,050 C

(141) Q ~\Õ ¢l _`, i ÅD e<# ,-!( ( ÅD ~\ Æ! $ %y i Uà 8:: 2. ® ! 5Õ5. 1,100 C

(142) Q ~\Õ ¢l _`

(143) ( i @D e<# ·( ( q <x 108%

(144) $5. U ~U$º ! ¸Õ Zn SiO :Mn <x ¢l

(145) Si l\# o. o. o. o. 3+. 2. 4. 2. 3+. +. 4. +. 2. 4. o. o. 2. 4. o. 2. 4. 3+. 3+. 2. 3+. +. Fig. 5. SEM photographs of Zn2SiO4:Mn, Gd /Li phosphor particles post-treated at different temperatures.. I ä:g: =g4 ÇÜ3 d|gû5. 0.5 mol% ¾ äÕ ¢l _`

(146) ( 5 µm ¬ÿ" ÇÜÕ ¢ l 3( zI Î& ' !5. ( -g ÔyI ¹$ ð \> U ÅD ?

(147) g( z ! pPÕ5. U ~U$º

(148) $Q ¸3j Zn SiO :Mn <x Gd /Li ¾

(149) 6) X- ´ U %a# Fig. 4

(150) ,-!5. ¢ 3+. 2. 4. +. +. 4+. +. 4. o. o. 4+. 2. 4. HWAHAK KONGHAK Vol. 40, No. 6, December, 2002.

(151) . 756. <x <dI çdÄ(

(152) ( ua! ,, e< ¢l

(153) y GHI J5. U ~U$º

(154) $Q ¸Õ Zn SiO :Mn <x _` È e<° ~\ Æ

(155) 6)Q É GHI ^. B, 1,145 C

(156) Q ~\Õ ¢l ´ e< <dI :( z ! Î3!5. U ~U$º

(157) Zn SiO :Mn <x ¢l ¸

(158) Q, ´ Ì Gd / Li ¾# ðg4 Ý ~\ Æ# y !" <x e<°I Hd3 ' !5. Zn2SiO4:Mn. 2. 4. o. 3+. 2. 4. +.

(159) Fig. 7. Emission spectra of Gd3+/Li+ co-doped Zn2SiO4:Mn phosphors post-treated at different temperatures.. x& Gd /Li # codoping dI !" <x e<°I Hd3 ' !5. Gd /Li codoping Ìa Ý ~\ Æ# y !", q <xÔ5 @D e<7 äp <dI :(. <x# ¸& ' !5. 3+. +. 3+. +. 4.. . q Zn SiO :Mn í8 <x e<°I Sg ¹$ fumed ¢l# -x! qg( !Â U ~U$ºI ¢gû B l\# Kõg( Gd /Li ¾# ðgû5. ¸Õ ¢l( jÕ 67 , |D ¢lÉ, ¡D ¢ U£ E ÇÜI ,-!5. ¾# ð !" <dI Hd3 '( ! , e< g3( %a# Ô - Ô4»a( \, U ~U$º

(160) Q( y Ì Gd /Li ¾# ð ! " Zn SiO :Mn <x VUV Gs g

(161) Q e< 7 <d ° I }d

(162) Hd5. 0.1 mol% Gd /Li ¾# £g( Zn SiO :Mn <x _`, q <x

(163) $ 5% @D e< äp <dI ·5. ÈC, Gd /Li ¾ a ð( PDP silica , Si4+. 2. 2. 2. 4. 3+. +. 3+. +. 3+. +. 4. 4. 3+. 40 6 2002 12. +. 1. Copeland, T. S., Lee, B. I., Qi, J. and Elrod, A. K.: J. Lumin., 97, 168 (2002). 2. Lu, S. W., Copeland, T., Lee, B. I., Tong, W., Wagner, B. K., Park, W. and Zhang, F.: J. Phys. & Chem. Solids, 62, 777(2001). 3. Su, K., Tilley, T. D. and Sailor, M. J.: J. Am. Chem. Soc., 118, 3459 (1996). 4. Lenggoro, I. W., Iskandar, F., Mizushima, H., Xia, B., Okuyama, K. and Kijima, N.: Jpn. J. Appl. Phys., 39, L1051(2000). 5. Hampden-Smith, M. J., Kodas, T. T. and Caruso, J.: U. S. Patent, 6,180,029 B1(2001). 6. Kang, Y. C., Roh, H. S. and Park, S. B.: Adv. Mater., 12, 451(2000). 7. Morell, A. and Khiati, N. E: J. Electrochem. Soc., 140, 2019(1993). 8. Chang, I. F., Brownlow, J. W., Sun, T. I. and Wilson, J. S.: J. Electrochem. Soc., 136, 3532(1989). 9. Ronda, C. R. and Amrein, T.: J. Lumin., 69, 245(1996). 10. Barthou, C., Benoit, J., Benalloul, P. and Morell, A.: J. Electrochem. Soc., 141, 524(1994). 11. Sohn, K. S., Cho, B., Chang, H. and Park, H. D.: J. Electrochem. Soc., 146, 2353(1999). 12. van der, Kolk, E., Dorenbos, P., van Rijk, C. W. E., Bechtel, H., Jüstel, T., Nikol, H., Ronda, C. R. and Wiechert, D. U.: J. Lumin., 8789, 1246(2000). 13. Seong, B. Y., Han, C., Park, H. D. and Kim, D. S.: J. Kor. Ceram. Soc., 38, 337(2001)..

(164)

Spherical-shaped Zn<sub>2</sub>SiO<sub>4</sub>:Mn Phosphor Particles with Gd<sup>3+</sup>/Li<sup>+</sup> Codopant
