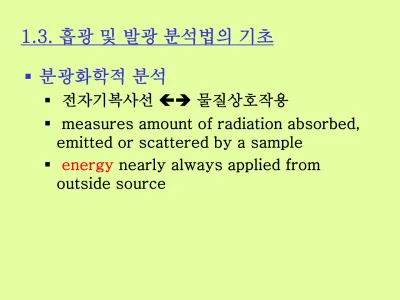

1.3. 흡광 및 발광 분석법의 기초
분광화학적 분석
전자기복사선 물질상호작용
measures amount of radiation absorbed, emitted or scattered by a sample
energy nearly always applied from
outside source 분리분석(separation) : chromatography
uses
chemical or physical properties to
separate components of a mixture often quantifies at the same time
전기화학분석 : 물질 전기화학적 성질 이용
Electrical signal is applied to a solution or electrical properties of a solution are measured
Contact with solution maintained by two or more electrodes
The Electromagnetic Spectrum
The EMR Spectrum
Different portions of the EMR
spectrum and
different types of spectroscopy
involve different parts (quantum states) of the atom
기기 구 성: 신호발생장치 검출기
신호처리장치 및 출력변환기 판 독장치
분석용 기기 : 사람이 직접 검출 혹은 이해할 수 없는 분석 신호를 검출, 이해할 수 있는 신호의 형태로 변환
분광기(spectroscopy)
cornerstone of analytical instrumentation
Interaction of light with matter
전자기 복사선의 여러 형태 사용
초기 가시선 영역 자외선, 적외선 영역 확장 사용. 자/적외선 위/아 래 영역을 사용하는 기기는 일반적 분광기기와 상당히 다름 (핵자기 공명, x선 분광법등)
광학분광법은 6가지 현상을 이용(흡수, 형광, 인광, 산란, 방 출 및 화학발광)
흡수법(광원빛살 시료통과 직선파장 선택기)
형광.인광.산란 (시료속의 고유한 형광, 인광, 산란복사선 을 방출)
방출, 화학발광 (외부 복사선 광원을 필요로 하지 않음. 시 료 그자체가 방출체/발광체)
방출(광)분광법-시료용기 아아크, 스파아크, 불꽃 특정복사선 방출
화학발광 (분석물의 화학반응에 의해)
빛=전자기복사선 특징?
Light is
a form of energy
Light travels through space at extremely high velocities
The speed of light (c) ~ 3 x 1010 cm/sec or 186,000 miles per second
Light is classified as
electromagnetic radiation (EMR)- 전자기복사선
빛 (전자기복사선) 과 물질(분자, 원자..)
Light 특성
Light behaves like a
wave(파동).
modeled or characterized with wave like properties.
Light also behaves like a
particle(입자).
The photon and photoelectric effect.
Today, we envision light as a self-contained packet of energy, a photon(광자), which has
both wave and particle like properties.
입자와 파동성의 이중성으로 설명 (상호보완)
파장, 진동수, 속도, 진폭과 같은 매개변수 사용
파동모형 복사E의 흡수/방출 관련된 현상 설명 어려움
입자모형 에너지 불연속 인자 흐름; Photon(광자)
전파 지지해 주는 매질 필요로 하지 않음 (소리는 매질 필 요), 진공도 통과
전자기 스펙트럼 : 넓은 범위의 파장과 진동수 (일부 겹침, 가시선 영역 아주 작음)
전기 성분이 물질에 충돌시 입자처럼 행동 (파장이 아님)
결과 에너지 level 바꿈.
대단히 큰 속도로 공간을 투과하는 에너지의 한 형태
빛, 복사열, 분명하게 표현하기 어려운 것
(감마선, x선, 자외선, 마이크로파, 라디오파, 복사선등)
전자기 복사선 (electromagnetic radiation)
서로 수직으로 진동하는 전기장과 자기장으 로 구성
전기와 자기적 성질을 띄고 평면에서 상호수
직으로 진동하는 wave.
EMR wave characteristics
Wavelength (λ
)
is the distance from one wave crest to the next (파장). Amplitude is the vertical distance from the midline of a wave to the peak or trough (진폭).
Frequency (ν) is the number of waves that pass through a particular point in 1 second (Hz = 1 cycle/s) (진동수)
The
frequency of a wave is dictated(or fixed) by its source, it doesn ’t change as the wave
passes through different mediums. The
speed
of a wave (u
), however, can change as the medium through which it travels changesu medium = ν = c/n
Where n = refractive index nvacuum = 1 ©
nair = 1.0003 (uair = 0.9997c) nglass ~1.5 (ugas ~ 0.67c)
Since
v
is fixed, as
decreases, u
must also decreaseEMR particle(입자) characteristics
The energy of a photon depends on its frequency ( ν )
E photon = h ν
h = Planck ’ s constant
h = 6.63 x 10
-27erg sec or 6.63 x 10
-34Js
파동과 입자 특성 관계 보는 관점에 따라 입자, 파동 (양자역학)
E
photon= hv ; u
medium= v = c/n
With these two relationships, if you know one of the following, you can calculate
the other two
Energy of photon
Wavelength of light
Frequency of light
E
photon=
n hc
n hc
Light Interacts with Matter
Atoms are the basic blocks of matter.
They consist of
heavy particles (called
protons and neutrons)
in the nucleus,surrounded by lighter
particles called
electrons
원자 (electrical neutral)
= electron + proton + neutron
원자의 중심부인 nucleus(핵)에 양성자와 중성자가 집중
양성자 : positive electrical charge
(양성자의 수 = atomic number)
중성자: no charge, proton and neutron mass same
전자 : a negative charge equal to proton, 무게 양성 자의 1/1836, 전자는 orbital 형태로 움직임
1
H
2 1H
3(원자번호 1; 양성자+중성자=2, 3)
동위원소 : 동일한 핵전위,
다른
중성자 수How light interacts with matter .
An electron will interact with a photon.
An electron that absorbs a photon will gain energy.
An electron that loses energy must emit a photon.
The total energy (electron plus photon)
remains constant during this process.
• 전자는 질량이 매우 작고 원자 안에서 매우 빠른 속력으로 움직 이므로 전자가 어느 순간, 어느 위치에 존재하는지를 정확히 알 수는 없지만, 원자핵 주위의 특정 영역에서 일정한 에너지를 갖 는 전자가 위치할 수 있는 확률은 결정할 수 있다.
• 이와 같이 일정한 에너지의 전자가 원자핵 주위에 존재하는 확 률 분포상태를 오비탈 또는 궤도함수라고 한다.
• 원자의 선스펙트럼을 이루는 각각의 선을 정밀한 분광기로 자세 히 관찰하면 한 개의 빛나는 선으로 생각되었던 것이 여러 개의 선으로 어루어져 있음을 알 수 있다.
• 이것은 같은 전자 껍질이라도 전자가 가질 수 있는 에너지 상태 는 여러가지가 있음을 뜻한다.
• 원자 내에 존재하는 전자들의 에너지 상태는 4가지 양자수에 의 해 결정된다.
ORBITAL :
일정한 에너지를 갖는 전자가 원자핵 주위에 존재하는확률 분포
상태(궤도함수)오비탈 모형에서 원자를 구성하는 전자의 에너지상태, 전자구름 모양, 방향성은 4가지 양자수에 의해 결정된다.
(1)주양자수(n) 전자의 에너지 준위 나타냄.
n = 1, 2... 대응하는 전자 껍질은 K, L, M, N...
(2)방위양자수(l) (부양자수) 전자 부껍질. 오비탈의 모양 결정 l = 0, 1, 2....(n-1) 대응하는 오비탈 기호 s, p, d, f, g, h (3)자기 양자수 (m) 원자는 강한 자기장 내에서 그 에너지 준위
가 다시 나누어짐. m은 전자 구름의 방향과 궤도면의 위치를 결정
m = -l, -(l-1)...-1, 0, +1...+(l-1), l (2l+1)개의 정수값 (4)스핀양자수 (s) 자전하고 전자의 자전에너지 결정, s, l, m에
관계없이 어떤 축을 도는 전자의 회전. 방향에 따라 정해진 다. =+1/2. -1/2 두가지 존재
각 전자 껍질의 전자 부껍질과 오비탈 수
전자껍질 K L M
주양자수 (n)
1 2 3
방위양자수
(l) 0 0 1 0 1 2
오비탈 종류 1
s
2s
2p
3s
3p
3d
공간배위
s s p
x, p
y,
p
zs
px, py,pz
dxy,dyz, dxz,dx2-y2,
dz2
오비탈 수
(n2) 1 4 9
표시방법
⇅ ⇅ ⇅⇅⇅ ⇅ ⇅⇅⇅ ⇅⇅⇅⇅⇅
전자기 복사선 흡수: 복사선 에너지는 방출물질 흡수 매질로 영구히 전이
파동성질 보다는 광자 photon/양자 quanta 입자의 불연속 적 흐름으로 취급
(1) 복사선 흡수
복사선 통과(고체, 액체, 기체층) 특정 진동수 흡 수, 선택적 제거.
에너지는 시료의 원자나 분자로 전이
바닥상태 들뜬상태 (excited state)
에너지 차이 = 각 화학종의 고유한 값
(광자에너지 화학종 E 차이 일치)
흡수된 복사선 진동수 시료물질의 성분 파악
흡수 스펙트럼 다양한 모양 : 흡수화학종의 복잡성, 물리적 상태
원자흡수
:단순한 스펙트럼
흡수원자들의 에너지 준위 몇 개 되지 않음 들뜨기 과정은 only 전자전이
분자흡수
: 에너지 상태의 준위수가 단일원자의 것에 비해 많음 흡수 띠와 관련된
E = Eelec
(전자)+E
vib(진동)+E
rot(회전)
이완과정 (relaxation)
:nonradiative(비복사)와 radiative(복사) 이완
흡광 특성
Absorption is defined as the process by which EMR is transferred, in the
form of energy, to the medium (s, l, or g) through which it is traveling
Involves discrete energy transfers
Frequency and wavelength selective E
photon= hv =h* c/
For absorption to occur, the energy of the
photon must exactly match an energy level in
the atom (or molecule) it contacts
Ephoton = Eelectronic transition
Energy transitions and photons
The energy of photon that can interact with a transition jump depends on the energy difference between the electronic
levels.
Energy level diagram
• Absorption and
emission for the sodium
atom in the gas phase
• Illustrates discrete energy transfer
ΔEtransition = E1 - E0 =
hv
=hc/
Molecular absorption(분자흡광)
More complex
than atomic absorptionbecause many more potential transitions
exist
- Electronic energy levels - Vibrational energy levels - Rotational energy levels
Emolecule = Eelectronic + Evibrational + Erotational
- Eelectronic > Evibrational > Erotational
Result complex spectra
Molecular
absorption spectra in the solution phase
• In solvents the rotational and vibrational
transitions are highly restricted resulting in broad band absorption
spectra
(2) 복사선 발광 (방출) emission
들뜬입자(이온, 원자, 분자)가 낮은 에너지 준위로 이완할 때 과량의 에너지를 광자(전자기 복사선) 방출.
reverse of the absorption process
기체 입자떨어져 있음. 몇가지 복사선 방출. 불 연속 선 스펙트럼
응축상, 복잡한 분자 광범위한 영역의 파장 빛.
연속 스펙트럼
