Measurement of the Nonlinear Absorption Coefficient by Using a Knife-edge X-scan Method

(1)

³

oª o x × ¤ 0 n Éù p § T Ó Þ X ¢ R Ò Å] k ù ÿ ¤ 4 ¤ ¤X N Ë

»ZÌ *° · +2ø¶B0å^∗

% ò

z@/<Æ§ Óüto<Æõ, âíß 712-749 (2006¸ 11Z4 13{9 ~ÃÎ6£§)

q

+þA f¨Ãº >Ãº\¦ 8£¤&ñ½+É Ãº eH ºú±ú x»¡¤ ÅÒZO`¦ ]jîß %i¦, sFg f¨Ãº (two photon absorption)\¦ ¦9 # K$3&h s:rd`¦ Ä»¸ %i. q&ñ|9 ºúï>s×¼ As2S3~ÃÌ}õ LiNbO3:Fe, BaTiO3, SBN:Ce1pxõ °ú Ér FgÏãJ]X &ñ B|9`¦ s6 x # 8£¤&ñôÇ z´+«> õ\¦ Ä»¸)a s:rdõ_ r Ð

3

x?/l\¦ :xK q+þA f¨Ãº >Ãº\¦ &ñ %i. &ñ)a q+þA f¨Ãº >ÃºH βAs₂S₃ = 0.509 cm/W, βBaTiO₃ = 268 cm/MW, βLiNbO₃:Fe= 0.681 cm/kW, βSBN:Ce= −0.699 cm/kW s 9, l>r_ 7HëH

\

"f 8£¤&ñôÇ q+þA f¨Ãº >Ãºü< Ä»ôÇ °úכõ ÂÒ ñ\¦ Ð%i.

PACS numbers: 42.65.K

Keywords: ºú±úÅÒZO, As2S3, BaTiO3, LiNbO3:Fe, SBN:Ce, q+þA f¨Ãº >Ãº

I. "e Â]Ø

1975¸ Suzakiü< Tachibana ]jîßôÇ ºú±ú ÅÒZO [1]Ér, çßéßôÇ z´+«> ©uÐ {9)a YUs$ c :£¤$í`¦ Z}

É

r &ñx9¸Ð 8£¤&ñ½+É Ãº eH ©&hÜ¼Ð þjHt ´ú§s

6 x÷&¦ e. ºú±ú ÅÒZOÉr YUs$ c`¦ E$Ý¼Ð |9Fg

# E$Ý¼ í&hÂÒH\ ºú±ús ÂÒÃÌ)a +þA ¸'\¦ Fg»¡¤ _

Ãºf~½Ó¾ÓÜ¼Ð {9&ñôÇ 5Åq¸Ð s1lx "f c_ 0>

o\¦ 8£¤&ñ H z´+«>s. q+þA Fg<Æ B|9s E$Ý¼\ _

K |9Fg)a í&h\ Z~{9 âÄº, B|9`¦ ÈÒõ l _ c [

jlü< B|9`¦ ÈÒõôÇ Êê_ c [jl ²út 9, B|9`¦ :

xõôÇ Êê_ c [jlH B|9_ ¿ºa\ tÃº&hÜ¼Ð y

è H +þA f¨Ãº÷rëß m c [jl\ _>r H q

+þA f¨Ãº_ %ò¾Ó`¦ ~ÃÎ> )a. q+þA Fg<Æ B|9õ _

H]XôÇ ©IÐ q+þA Fg<Æ B|9 ·ú¡\"f ºú±ú ÅÒZO

`

¦ z´'½+É M:, q+þA Fg<Æ B|9s \OH âÄº í&h\"f Y

O

o b#Q /BM\"f \P2; >h½¨ ~½ÓZOÜ¼Ð 8£¤&ñôÇ c 0>

oü< q+þA Fg<Æ B|9s eH âÄº "fÐ Ér 0>

o\¦ Ðs> ÷& 9, Õª 0> oH q+þA f¨Ãº >Ãº _

ÂÒ ñü< ß¼l\ _>rôÇ. 7£¤ q+þA Fg<Æ B|9`¦ ÈÒ õ

ôÇ Êê_ c 0> o\¦ :xK q+þA f¨Ãº >Ãº_ ÂÒ

ñü< ß¼l\¦ 8£¤&ñ½+É Ãº e. sü< °ú Ér ºú±ú x»¡¤ ÅÒ Z

O

(knife edge x-scan method)Ér {9ìøÍ&hÜ¼Ð q+þA Fg

<

Æ >Ãº\¦ 8£¤&ñ H 3 ¦¸ Òqt$íZO (third harmonic generation), »¡¤@ Fg D¥½+ËZO (degenerate four wave

∗E-mail: [email protected]

mixing) [2,3], l©\ _K Ä»¸)a 2 ¦¸ Òqt$íZO (electric field induced second harmonic generation), ³ð

e¦Ý¼7H ¸'a ½+ËZO (surface plasmon waveguide coupling), Fg<Æ&h Kerr >sàÔZO (optical Kerr gate) [4, 5], q+þA çß[O> (nonlinear interferometry) [6], "é¶ r

ZO (ellipse rotation) [7], c =/BG 8£¤&ñZO (beam distor- tion measurement) [8] °ú Ér ~½ÓZOõ ²úo, l>r_ ºú±ú ÅÒ

ZO`¦ q+þA B|9\ Õª@/Ð &h6 x # q+þA Fg<Æ B

| 9

_ q+þA f¨Ãº >Ãº\¦ çßéßôÇ z´+«> ©uÐ 8£¤&ñ½+É Ãº e

H ©&hs e.

:

r 7HëH\"fH ºú±ú x»¡¤ ÅÒZO`¦ s6 x # q&ñ|9 º

ú

ï>s×¼ B|9 As2S3 x9 LiNbO3:Fe, BaTiO3, SBN:Ce1pxõ °ú Ér FgÏãJ]X &ñ B|9_ c 0> o\¦ 8

£

¤&ñ ¦ sFg f¨Ãº\¦ ¦9ôÇ K$3&h s:rd`¦ Ä»¸

%i. Ä»¸)a s:rd`¦ ½ÓÜ¼Ð 8£¤&ñ)a z´+«> õü<

_

rÐ3x?/l\¦ :xK q+þA f¨Ãº >Ãº_ ÂÒ ñ x9 Õª ß¼ l

\¦ &ñ %i.

II. T Â]Ø

Fig. 1õ °ú Ér ºú±ú x»¡¤ ÅÒZO\"f q+þA Fg<Æ B|9

`

¦ ÈÒõôÇ Êê_ c 0>H Fg»¡¤_ Ãºf ~½Ó¾Ó x»¡¤Ü¼Ð

' H ºú±ú\ _K 9 ÂÒìr`¦ ]jü@ôÇ Qt ÂÒ ì

r\ K{© H c[jl\¦ &hìr H כ õ °ú . ºú±ú_ &³ F

0Au\¦ x⁰¦ ¿º B|9`¦ ÈÒõôÇ Êê_ 0> oH d

(1)õ °ú .

-312-

(2)

Fig. 1. Experimental setup for knife edge x-scan.

P = Z _∞

−∞

Z _x⁰

−∞

Iout(x, y) dxdy (1)

#

l"f Iout(x, y)H q+þA Fg<Æ B|9`¦ ÈÒõôÇ Êê_ c [

jls. sFgf¨Ãº (two photon absorption)\¦ ¦9

q+þA Fg<Æ B|9`¦ ÈÒõôÇ Êê_ c [jlH d (2)ü<

° ú

Ér pìr ~½Ó&ñdÜ¼Ð ³ð&³)a.

dI

dz⁰ = − (α0+ βI) I (2)

#

l"f, α0H +þA f¨Ãº >Ãº, βH q+þA f¨Ãº

>

Ãºs. IH B|9 ?/ÂÒ\"f_ c [jls. B

| 9

\ {9 H Äºrîß c [jl\¦ Iin(x, y) = I0

¡w²± w₀²¢

exp£

−2¡

x²+ y²¢±

w²¤

Ð &ñ çßéßôÇ

>

íß`¦ :xK B|9`¦ ÈÒõôÇ Êê_ c [jlH d (3)Ü¼Ð Å

Ò#Q.

Iout(x, y) = I0exp£

−2¡

x²+ y²¢±

w²¤ 1 + q exp£

−2 (x²+ y²)±

w²¤ (3)

#

l"f, I0H í&h\"f_ c [jl, w0H í&h\"f_ c ìøÍ

â

, q = βI0

¡w²± w²₀¢

Lef fH q+þA f¨Ãºü< 'a>)a ªs 9, w²= w₀²

h

1 + (z/z0)² i

, Ä»´òU´s (effective length)H Lef f = (1 − exp [−α0L])/a0, LÉr B|9_ ¿ºa, z0 = kw₀²±

2Ð ÅÒ#QtH Rayleigh r]X os. Ér q°úכ (q < 1)`¦ &ñ ¦ d (3)`¦ q\ @/ # Taylor /åLÃº

>hôÇ 6£§ d (1)\ @/{9 # >íß q+þA Fg<Æ B

|9`¦ ÈÒõôÇ Êê_ c 0> oH d (4)ü< °ú .

P (x⁰) = P0

X∞ n=0

(−q)ⁿ n + 1

h

Erf³p

2 (n + 1)x⁰ .

w

´ + 1

i

(4)

#

l"f P0H πw₀²I0

±2Ð í&h\"f_ c 0>, Erf (•)H error <ÊÃºs. n = 0 âÄº d (4)H q+þA Fg<Æ B|9 s

\O`¦ M:_ ºú±ú ÅÒZO õü< °ú [1].

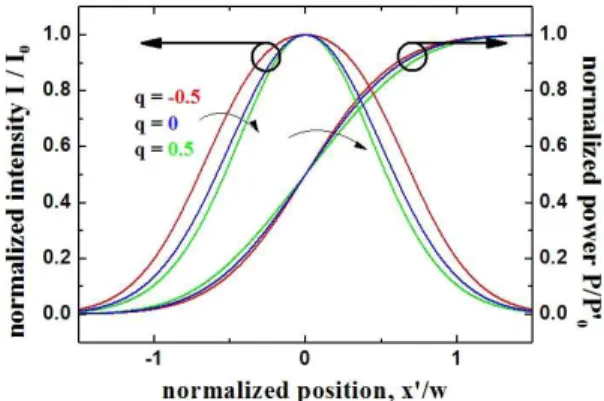

Fig. 2. Theoretical power and intensity curve for vari- ous q.

Fig. 3. Measured gaussian beam profile without sample.

Fig. 2H í&h\"f_ c [jlü< q+þA f¨Ãº\ K{©

H q\¦ −0.5, 0, 0.5ü< °ú s [j t âÄº\ @/ # ½©

o)a c 0>ü< s\¦ x⁰\ @/ # pìrôÇ ½©o)a c [

jl ìrí\¦ ·p s:r ÕªAáÔs. :£¤y ½©o)a c [

jl ìrí\"f q+þA Fg<Æ B|9s \O`¦ M:, 7£¤ q = 0`¦

×

ædÜ¼Ð q+þA f¨Ãº >Ãº_ ÂÒ ñ ª (+){9 âÄº c ì

ø

Íâs t¦, q+þA f¨Ãº >Ãº_ ÂÒ ñ 6£§ (−){9

â

Äº c ìøÍâs &f`¦ ·ú Ãº e.

III. ÷mÇ]Mö õmÍ +sÇÊÝ

:

r z´+«>\ 6 xôÇ q&ñ|9 ºúï>s×¼ As2S3B|9Ér 10⁻⁵ Torr_ /BN\"f \P$½Ó ~½Ód_ /BN 7£xÃÌl\¦ s 6

\

¦ s6 x # z´rçßÜ¼Ð Ä»o lóøÍ\ 7£xÃÌ÷&H As2S3~ÃÌ

(3)

}

_ ¿ºa\¦ 'a8£¤ %i. 8£¤&ñ)a ~ÃÌ}_ ¿ºa 7£x`¦ 0A K

Ér ÈÒõÖ¦`¦ %3Ér Êê ×æ ìøÍ s:r`¦ &h6 x # ¿ºa

\

¦ >íß %i. 'a8£¤)a ¿ºaü< ×æ ìøÍ s:r`¦ &h6 x

#

>íß)a ¿ºaH @/|ÄÌ 3 µmÐ "fÐ {9u %i. FgÏãJ]X

&ñ B|9[þtÉr a×b×c 10×10×10 mm Ü¼Ð Fe '

)

a LiNbO3:Fe &ñ`¦ 6 x %i¦, SBN:CeÉr a × b × c

5×5.4×6 mm Ü¼Ð Ces 0.1 % ')a &ñ`¦, BaTiO3H a×b×c 5×4×6 mm  &ñ`¦ 6 x %i. 632.8 nm_

| 9

> 5.5 mW \"f d w² = w²₀ h

1 + (z/z0)² i

`

¦ s6 x # Fig. 3õ °ú s E$Ý¼ í&h\ |9Fg)a YUs$ c ìøÍâ 3.28 µm`¦ %3%3. q&ñ|9 ºúï>s×¼ B|9 As2S3ü< Fg Ï

ã

J]X &ñ B|9 LiNbO3:Fe, BaTiO3, SBN:Ce[þt`¦ E$Ý¼

\

_K |9Fg)a í&h (z = 0)\ Z~¦ ºú±ús ÂÒÃÌ)a +þA

¸'\¦ x»¡¤ ~½Ó¾ÓÜ¼Ð 50 µm/sec 5Åq¸Ð {9&ñ > s1lx

"f q+þA Fg<Æ B|9ÐÂÒ' 50 cm b#Q /BM\ \P2;

>

h½¨ ~½ÓZOÜ¼Ð, {9c_ 0>\¦ 1.0 mW ÂÒ' 5.5 mW

t 0.5 mW çßÜ¼Ð 7£x "f q+þA Fg<Æ B|9

yy 10rm q+þA Fg<Æ B|9`¦ ÈÒõôÇ Êê_ c 0

> o\¦ 8£¤&ñ %i.

q

+þA f¨Ãº >Ãºü< {9c [jl Øæìry ¦

&

ñ

(q ¿ 1) K$3&hÜ¼Ð Ä»¸)a s:rd d (4)H d (5) ü< °ú s çßéß > 1 H½+É Ãº e.

P (x⁰) ∼= P0

©£Erf¡√

2x⁰± w¢

+ 1¤

− (q/2) [Erf (2x⁰/w) + 1]} . (5) Fig. 4H q&ñ|9 ºúï>s×¼ As2S3~ÃÌ} x9 BaTiO3, LiNbO3:Fe, SBN:Ce 1pxõ °ú Ér FgÏãJ]X &ñ B|9\"f ½©

o)a c 0> o x9 Õª c 0> o\¦ pìrôÇ c [j l

\¦ d (5)Ð rÐ3x?/lôÇ õs. c0> 5.5 mW\

"

f 8£¤&ñ)a q+þA Fg<Æ B|9 As2S3, BaTiO3, LiNbO3:Fe, SBN:Ce_ c 0> o d (5)ü< ¸ú {9u<Ê`¦ ·ú Ãº e

. d (5)Ð &ñôÇ q+þA f¨Ãº >ÃºH βAs2S3 = 0.509 cm/W, βBaTiO3= 268 cm/MW, βLiNbO3:Fe= 0.681 cm/kW , βSBN:Ce = −0.699 cm/kWü< °ú ¤.

Table 1Ér q+þA Fg<Æ B|9 As2S3, BaTiO3, LiNbO3, SBN:Ce\ rÐ3x?/l # &ñôÇ q+þA f¨Ãº >Ãº ü

< ÃÐ¦ëH³\"f /åL)a q+þA f¨Ãº >Ãº\¦ q§ôÇ ³ð s

. ÃÐ¦ëH³\ /åL)a q+þA f¨Ãº >Ãºü< ºú±ú x»¡¤ Å

ÒZOÜ¼Ð 8£¤&ñ # c0>o\¦ K$3&h s:rdÜ¼Ð r

Ð3x?/l # &ñôÇ q+þA f¨Ãº >ÃºH q5pwôÇ °úכ_ ß

¼l\¦ f`¦ ·ú Ãº e.

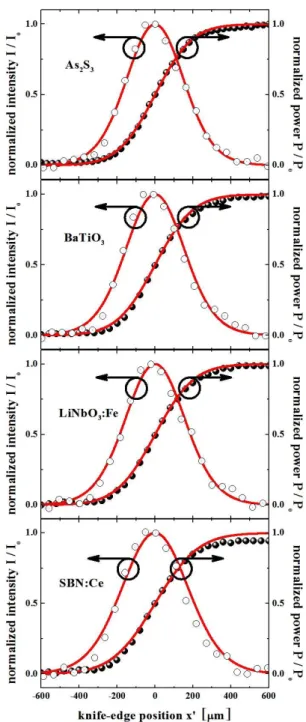

Fig. 4. Knife edge x-scan data with theoretical curves for various nonlinear optical materials.

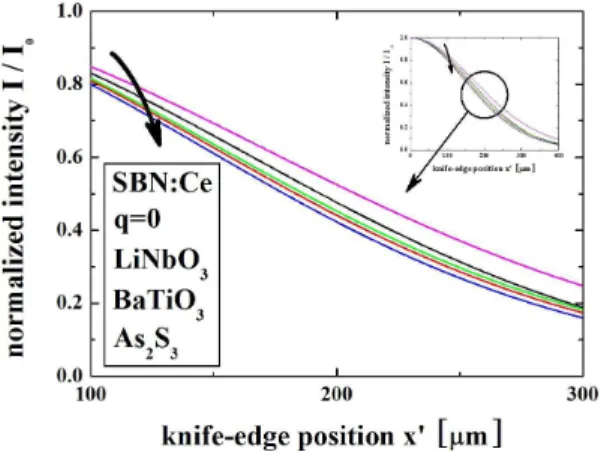

Fig. 5H c0> 5.5 mW\"f q+þA Fg<Æ B|9\ @/ ô

| 9

s \OH âÄº (q = 0)_ cìøÍâÐ SBN:Ce B|9_ c ì

ø

Íâs 8 ß¼ 9 sH Fig. (2)_ õ Fig. 5 x9 Table 1_ õü< 1lx{9 > FgÏãJ]X Fg<Æ B|9 SBN:Ce_ q +

þ

A f¨Ãº >Ãº_ ÂÒ ñ 6£§ (−)e`¦ ·p.

Measurement of the Nonlinear Absorption Coefficient by Using a Knife-edge X-scan Method

³



oª  o x  ×  ¤ 0 n Éù p § T  Ó Þ X ¢ R  Ò Å] k ù ÿ   ¤ 4  ¤  ¤X N Ë

oª o x × ¤ 0 n Éù p § T Ó Þ X ¢ R Ò Å] k ù ÿ ¤ 4 ¤ ¤X N Ë
