Growth and Physical Properties of ZnTe0.1Se0.9 Thin Films Prepared on Indium Tin Oxide Substrates
Do Hyung Kim · Soo Chang Choi · Eun Jeong Yoon · Chang Young Park · Jong Duk Lee · Jeoung Ju Lee∗
Department of Physics and Research Institute of Natural Science, Gyeongsang National University, Jinju 660-701, Korea
(Received 13 November 2012 : revised 29 November 2012 : accepted 31 December 2012)

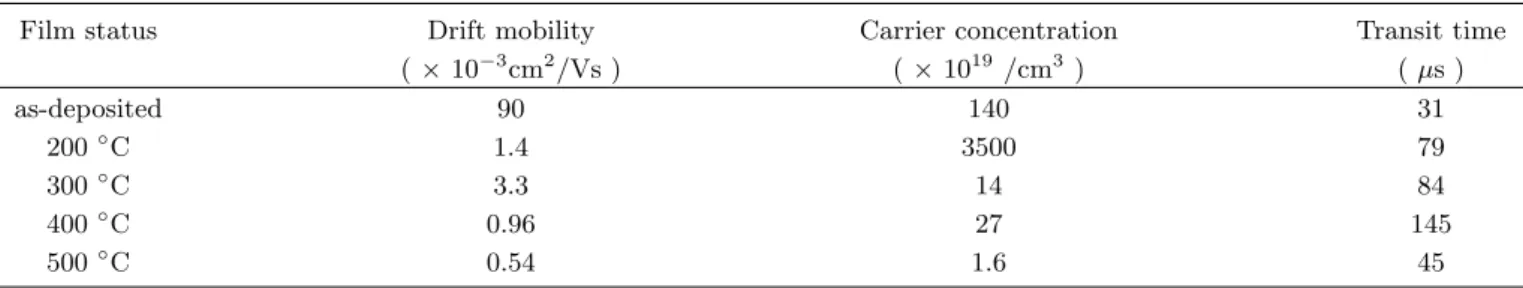

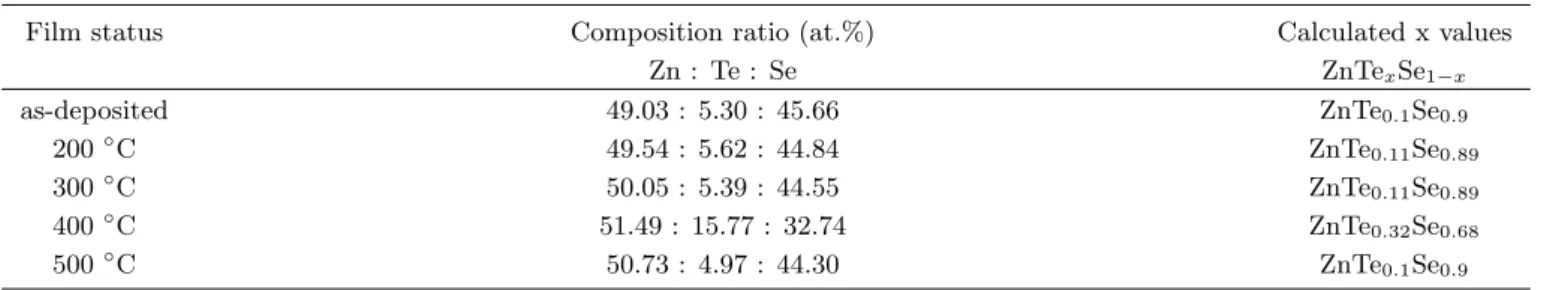

ZnTe0.1Se0.9 films were prepared on indium-tin-oxide (ITO)-coated glass substrates by using thermal evaporation. X-ray diffraction spectra showed that the ZnTe0.1Se0.9 films had a ZnSe zincblende structure with lattice constant a = 5.668 ˚Aand that the crystals were preferentially grown with a (111) orientation. The optical energy band gap, measured at room temperature, of the as-deposited ZnTe0.1Se0.9 film was 2.63 eV and increased to about 2.66 eV and then decreased to 2.52 eV upon annealing in a vacuum electric furnace at temperatures from 200◦C to 500◦C.
The dynamical behavior of the charge carriers in the ZnTe0.1Se0.9 film was investigated by using photoinduced discharge characteristic (PIDC) techniques.
PACS numbers: 61.10.-i, 81.05.Hd
Keywords: ZnTe0.1Se0.9 thin film, Annealing effect, Band gap energy, PIDC
ZnTe0.1Se0.9 UclTcl8ý <gXcl õmÍ önÚPXìÄ ¤VRË
»|¡0ïF · L|¬£ç¡ · *×<ª<+ä · ç¡*å · Tø¶B% · T+䮣∗
â
©@/<Ƨ õ<Æ@/<Æ Óüto<Æõ x9 líõ<ƽ¨è, ÅÒ 660-701 (2012¸ 11Z4 13{9 ~ÃÎ6£§, 2012¸ 11Z4 29{9 ú&ñ:r~ÃÎ6£§, 2012¸ 12Z4 31{9 >FSX&ñ)
/BN7£xÃÌZOܼРITO(indium-tin-oxide) lóøÍ 0A\ ZnTe0.1Se0.9 ~ÃÌ}`¦]j %i. X- r]X ì r
$
3\ _ # ~ÃÌ}_ ©ÃºH a = 5.668 ˚A ZnSe_ $3F g(zincblende)½¨¸\¦ ¦ e%3ܼ 9, Õ
ª $í©~½Ó¾ÓÉr (111)~½Ó¾ÓܼР×þ $í©Hd`¦·ú ú e%3. 7£xÃÌ)aZnTe0.1Se0.9~ÃÌ}\ @/ # z´:r
\
"f 8£¤&ñôÇF g<Æ&h \ -t { çß Ér 2.63 eVs%3¦, \P%o :r¸\¦ 7£x<Ê\ 7£x y
è %iܼ 9, 200◦C ∼ 500oCÐ \P%oôÇ ~ÃÌ}_F g<Æ&h \ -t { çß Ér 2.52 eV ∼ 2.66 eVs%3
. ZnTe0.1Se0.9~ÃÌ} ?/_ î rìøÍ[þt_ 1lx%i<Æ&h 1lx`¦F gÄ»l ~½Ó:£¤$í(PIDC : photoinduced discharge characteristics)~½ÓZOܼР¸ %i.
PACS numbers: 61.10.-i, 81.05.Hd
Keywords: ZnTe0.1Se0.9 ~ÃÌ}, \P%o ´òõ, \ -t { çß ,F gÄ»l ~½Ó:£¤$í
∗E-mail: [email protected]
73
I. "e Â]Ø
t
èß Ãº¸ 1lxîß V,Ér \ -t { çß (wide band gap)`¦ °úH II-VI+þA o½+ËÓüt ìø͸^[þt MX[IIb7ᤠFK 5
Åq(metal) M = Zn, Cd, Hgü< VIa7ᤠºúïp(chalcogen) X = S, Se, Te]H F g è(optoelectronic devices), r
F g %ò%i_ µ1ÏF g è(visible region light emitting devices), F g tè(light detecting devices), F gl
§ 4
¨8(photovoltaic conversion [solar cells]), X- x9 γ- t(X-ray and γ-ray detection) ì r 1px\ ª ô
Ç 6£x6 x F§4`¦ °úl M:ëH\ Ö¸µ1Ïy ½¨÷&#Q M®o [1–5]. ´ú§Ér II-VI+þA o½+ËÓüt ìø͸^[þt î rX<"f, "é¶o
½
+ËÓüt ZnSe1−xTexH ZnSeü< ZnTe_ ½+ËܼРëß[þt#Q
. ZnSeH \ -t { çß 2.6 eVü< 0.16 eV_ s:r
o \ -t(ionization energy)\¦tH [6]ìøÍ, ZnTeH þ
j&h\ -t { çß 2.26 eVü< 3.53 eV_ ±úÉr 2;o
§ 4
(affinity)`¦ [7]. ¢¸ ¿º ìø͸^[þt_ ¸iç(doping) :
£¤$íÉr"fÐ ìøÍ@/s. ¦Ä»ôÇ ZnSeH n-+þAs¦, ¦Ä»ôÇ ZnTeH p-+þAs [8]. ôǼ#, ZnSeü< ZnTeH z´:r\"f V,
É
r\ -t { çß `¦tټР0lqÒo µ1ÏF gs¸×¼(green light-emitting diodes) [9], Ä»^ Ö¦(dielectric mir- rors) [10], l-F g<Æì r tè(electro-optic field de- tectors) [11], Û¼À»gA è(switching devices) [12], Õªo
¦ Iªt(solar cells) [13] 1px_ F g èÐ >hµ1Ï÷&
#
Q M®o. Õª Q ¸Zþt±ú_ ÆÒ[jH II-VI+þA s"é¶o½+ËÓüt
\
II7ᤠ¢¸H VI7ᤠ"é¶è\¦ ' ¦ o<Æ|¾Ó:r&h ¸$í q
(stoichiometric ratio)\¦¸]X # "é¶o½+ËÓüt`¦½¨$í ô
Ç Êê ìø͸^_ :£¤$í`¦>h ¦ H½¨\¦Ö¸µ1Ïy
'K ¸¦ e [5,14]. þjH\H II-VI+þA o½+ËÓütìø͸
^
x9 _ ¸H ìø͸^[þt\ 'aôÇ lÕüt_ â¾ÓÉr è _
è+þA, â~ÃÌo_ ÆÒ[j\ ~ÃÌ}\ @/ôÇ'ads & t
¦ e. "f II-VI+þA o½+ËÓütìø͸^ ~ÃÌ}Éro<Æ6 x l
7£xÃÌ(chemical bath deposition) [15],F go<Æ ½+Ë$í 7£x
Ã
Ì(photochemical deposition) [16], Ä»lFK5Åq o<Æ l© 7
£
xÃÌ(metal organic chemical vapor deposition) [17], ï rx9
`
)a ^&h lÕüt(quasi-closed volume technique) [18], ì r
\x×þr(molecular beam epitaxy) [19], `OÛ¼o)a Y
Us$ 7£xµ1Ï(pulsed laser ablation) [20], ¦ÅÒ ÕªW1 à
Ô:r Û¼('aA(RF magnetron sputtering) [21], 7
£
xÃÌ(electron beam evaporation) [5], /BN7£xÃÌ(vacuum evaporation) [22] 1px_ ªôÇ lÕütÐ ]j÷&#QM®o.
"f tèß Y> ¸ 1lxîß II-VI+þA o½+ËÓüt ìø͸
^
ZnSeü< ZnTe Õªo¦ D¥½+Ë)a ZnSexTe1−x~ÃÌ}[þt
É
r 7£xÃÌ~½ÓZO_ &³$ôÇ µ1ϲúÐ ZnSexTe1−x \x8£x
(epilayers)õ ZnSexTe1−x/ZnTe s7áx]X½+˽¨¸ (het- erostructures)_ $í©`¦ 0px > Ùþ¡. ´ú§Ér ½¨
[þtÉr s ½¨¸[þt`¦ F g<Æ&hܼР:£¤$íor& M®o.
Brasilõ /BN1lx ½¨[þt [23, 24]Ér ì r \x×þr
Ð $í©ôÇ ZnSexTe1−x \x8£x_ F g<Æ&h :£¤$í`¦ Ð
¦ %i¦, Rajakarunanayakeü< /BN1lx ½¨[þt [25]Ér ZnSexTe1−x/ZnTe í (superlattices)ܼÐÂÒ' F gµ1Ï F
g(PL: photoluminescence) Û¼&7àÔ!3(spectrum)`¦ ¸
# H { ¸áÔ!Ó (valence band offset)`¦ II- +þ
A { C\P(type-II band alignment)`¦µ1Ï| %i. Yang 1
px [8]Ér ZnSexTe1−x \x8£xܼÐÂÒ' F gµ1ÏF g Û¼&7àÔ!3
`
¦ ¸ # Te ½¨5Åq "lor:r(bound excitons)_ xs ß
¼(peaks)ü< Te 9þt QÛ¼'(cluster)\ ½¨5Åq)a"lor:r`¦SX
%i. s ½¨[þt_ @/ÂÒì rÉr Z}Ér [Ouq6 xõ 7£x
Ã
Ì 5Åq¸ Ö¼2; ©q\¦6 x %i.
Õ
ª Q :r½¨\"fHo<Æ|¾Ó:r&h ¸$íq_ ]j#Q 0
p
x½+É ÷ rëß m @/&h 7£xÃÌ`¦0A # q§&h çßéß 9, °úכ¦ ¼#oôÇ /BN7£xÃÌ ZOܼРZnTe0.1Se0.9 ~ÃÌ}`¦ ]
j ¦ \P%o :r¸\ Ér½¨¸&h,F g<Æ&h :£¤$íõF g Ä
»l ~½Ó:£¤$í [26]\ _ôÇ @/)a î rìøÍ_ 1lx%i<Æ&h 1
lx(dynamical behavior) [27]`¦¸ %i.
II. ÷mÇ ]Mö
1. ZnTe0.1Se0.9 UclTcl8ý <gº
ZnTe0.1Se0.9 ~ÃÌ}Ér 100 ◦CÐ Ä»t÷&H ITO Ä»o l
óøÍ 0A\ \P7£xµ1Ï ~½ÓZO`¦ 6 x # 7£xÃÌ÷&%3. 7£x
Ã
Ì ×æ\ lóøÍ s(substrate holder)H 6 r/min ܼ
Ð ; ;y rr(. ¿ºaü< 7£xµ1ÏÖ¦Ér ú&ñ &ñ ¿º a
¸&ñ©u(quartz crystal thickness monitor)Ð ¸]X
÷
&%3. 7£xÃÌÖ¦Ér :r¸]j#Q ©u\¦ 6 x # èÛ¼ À
Ó(source current)ü< èÛ¼:r¸(source temperature)Ш8 í
ß # Ð&ñ %i. 9כ¹ôÇ $íì r_ ~ÃÌ}`¦ 7£xÃÌ l 0A
# 5N(99.999%)_ ZnTe(Aldich)ü< ZnSe(Aldrich) ì r
´ ú
`¦ yy 10%ü< 90%_ ]tq(molar ratio)Ð ¨î|¾Ó #
D¥½+Ër(. Õª 6£§·ú»¡¤©u\"f &ñ]j(tablet)Ð ëß [
þ
t#Q Û¼Ö¿ (basket) +þAI_ [jb(ceramic)`¦ {92³ )í Û
¼J$(W) ¸m(crucible) 5Åq\ V,#Q Øæì ry \V\P`¦ ôÇ Ê
ê 7£xÃÌr(. Õþ!Q(chamber) ?/_ íl/BN¸H 1 × 10−6 Torr_ ª ñôÇ ©IÐ Cl÷&%3. r«Ñ\¦]j l
0A # 6 x)a lóøÍÉr ITO Ä»o lóøÍ`¦ s6 x %i
. ZnTe0.1Se0.9 ~ÃÌ}`¦ 7£xÃÌ l lóøÍ`¦ [j'6 xÓo
?
/\ {HÊê 7£xÀÓúР'½¨#Q í6£§ [j'l\"f [j
